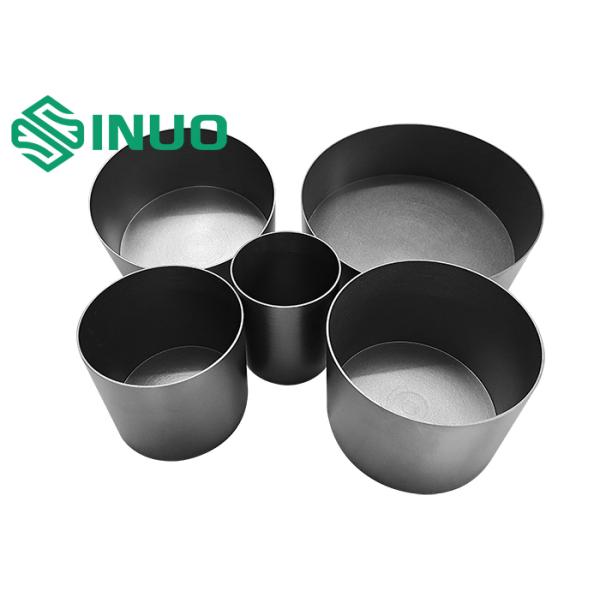

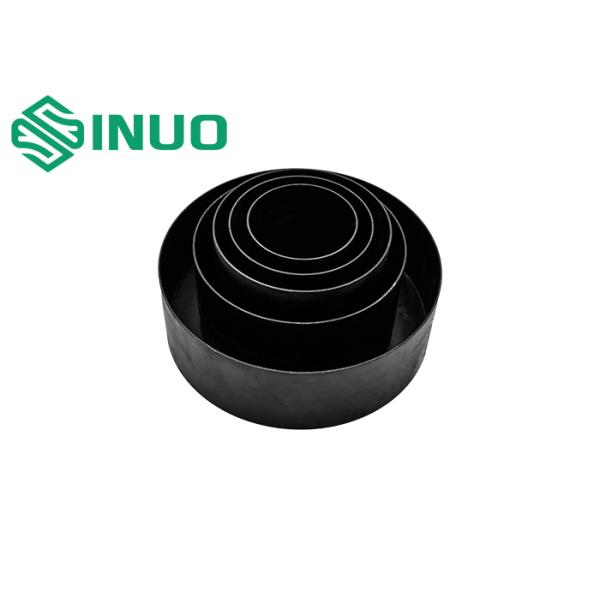

IEC 60335-2-6 Low Carbon Steel Vessel For Hotplates Test Cooking Appliance

Standards For Low Carbon Steel Vessel For Hotplates Test:

The vessel conforms to the standard requirements of IEC 60335-2-6:2018 clause 3.1.9.101 figure 102, IEC60335-2-9:2016 clause 3.1.9.108 figure 104, CISPR 14-1:2016, and etc.

Application For Low Carbon Steel Vessel For Hotplates Test:

The vessel simulates the cooking appliance which is placed on the induction hotplate. The vessel is made of low carbon steel having a maximum carbon

content of 0.08%.

Technical Parameters For Low Carbon Steel Vessel For Hotplates Test:

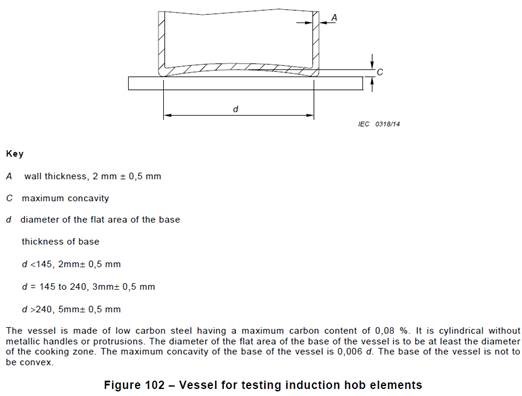

The dimensions and shapes are manufactured according following figure and table:

Test Procedures and Operation For Low Carbon Steel Vessel For Hotplates Test:

Please refer to the relevant standards.

Take IEC60335-2-9:2016 clause 3.1.9.108 as an example:

Induction hot plates are operated with vessels containing cooking oil. Controls are adjusted to their highest setting until the oil temperature reaches 180℃±4℃, and are then adjusted so that this temperature is maintained. The oil temperature is measured 1 cm above the centre of the bottom of the vessel. For appliances which cannot heat the oil to 180℃±4℃, the control is maintained at its highest setting.

Notice For For Low Carbon Steel Vessel For Hotplates Test:

1. The vessel is used to boil cooking oil, please don’t use it to boil other liquid or medium.

2. After each use, please use clean cloth to wipe it clean.

3. Please do not dry burn the vessel, or the coating of the vessel will be destroyed, and the vessel will be rusted easily without the protection coating.

4. Please do not damage the appliance shape and coating (such as scratching, dropping, etc.).

5. Prevented from dust and moisture environment, in order to avoid the rusts.
