IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
Specifications
Brand Name :
Sinuo
Model Number :
SN1109
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Power supply :
AC220V; 50Hz
Compressed air :
5~7kg/cm2, 0.5KW
Test station :
Single station
Maximum pressure :
2.5MP
Security pressure :
2.7～3.3MP
Temperature range :
0～200℃
Heater power :
2.4KW
Temperature deviation :
±0.5℃
Description

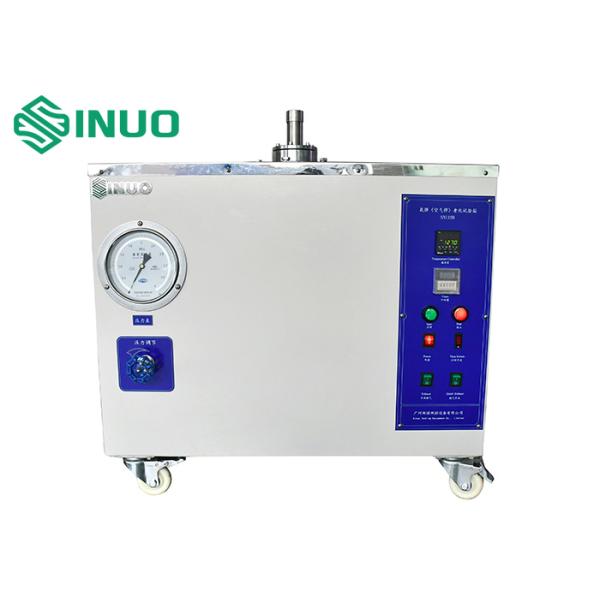

IEC60335-1 Air/Oxygen Bomb Test Apparatus For Household Electrical Appliances

Product Introduction For Air/Oxygen Bomb Test Apparatus:

Standard:Conforms to IEC 60811-412, IEC60335-1:2004 clause 22.32, IS: 9968 (Part 1 & 2), IS: 6380, IS: 10810-16, etc.

Application:It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber (plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

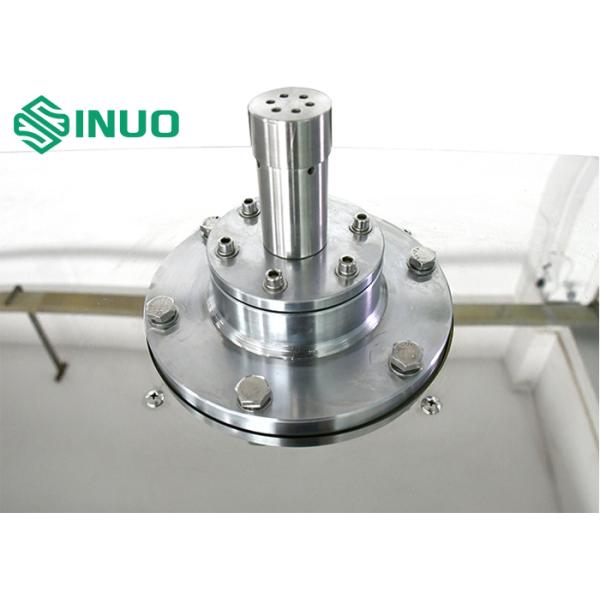

Structural principles:Adopt inner and outer box structure,sample suspended in oxygen tank,purity of oxygen supplied no less than 97%,pressure to 2.1±0.07 MPa ,temperature maintained at 70°±1°±C, aging test for 96hours in this state.

Test Principle: Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.

Technical Parameters For Air/Oxygen Bomb Test Apparatus:

Test station Single
Use Environment Power supply:AC220V±10%/50-60Hz,compressed air 5~7kg/cm2,0.5KW
Technical Parameters

1. Power:220V(AC), 50Hz, Single phase

2. Maximum Working Pressure:2.5MPa

3. Security Burst Pressure:2.7～3.3MP

4. Temperature range: 0～200℃

5. Dimensions:800×500×820mm

6. Tank volume:4000cm3

7. Heater power:2.4KW

8. Temperature alarm:0～200℃ adjustable

9. Temperature Deviation:±0.5℃

10. Temperature control:Digital display automatic control

11. Temperature control:Intelligent control

12. Construction materials:Stainless steel

13. Inner cell dimensions: 150×320mm (D × H) mm
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances
