Specifications
Brand Name :
Sinuo
Model Number :
SN1110
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood
Test Pressure :
0~20MPa
Power Supply :
AC220V/50Hz
Boost Rate :
100KPa/s
Test Station :
Single
Container Bottle :
450ml
Weight :
150kg
Test Time :
1~9999H
Solution :
Configure
Description

IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus

Product Information For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

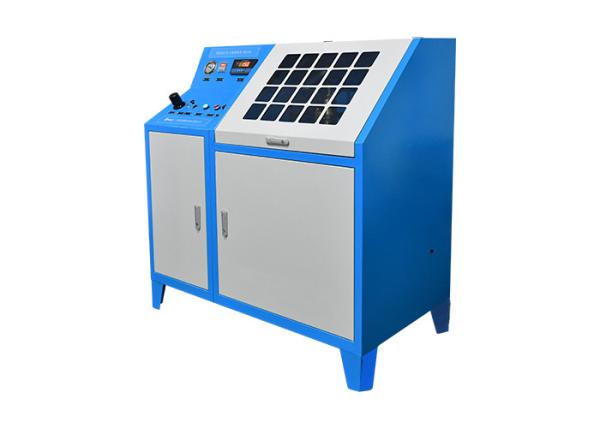

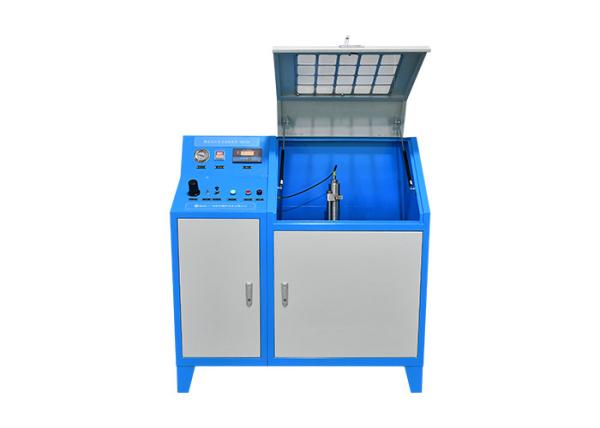

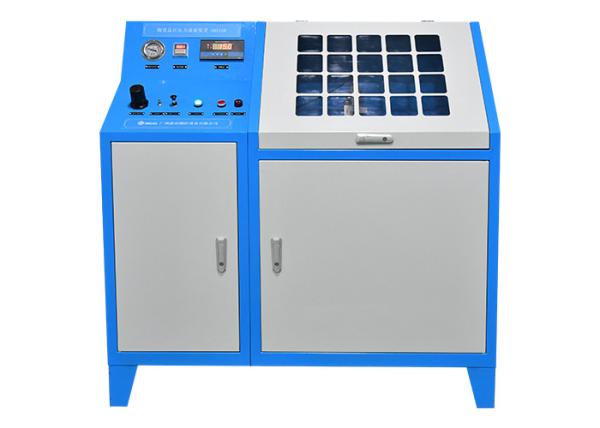

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.

It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.

Technical Parameters For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

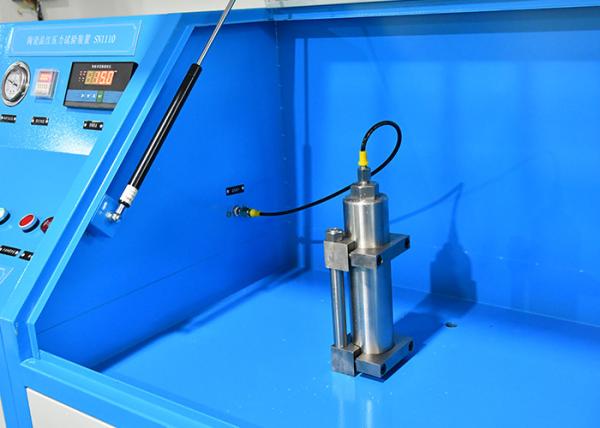

Test container Volume >100ml, pressure bearing capacity >15mpa, made of stainless steel
Power supply Match client's local power supply
Pressure hold time 0~99s can be set
Maximum test pressure 20mpa
Pressurization method Manual pressurization
Test pressure range 0~20mpa±0.5mpa, can be adjusted
Boost rate 100kpa/s
Display mode Digital display
Equipment dimensions 1200×500×1500(mm) W×H×D
Equipment weight 150kg
Power supply AC220V±10%/50-60Hz,3KW
Test station Single
Test pressure 0.5-20mpa±0.5mpa
Test completion reminder time 3 min
Test time 1~9999H
Container bottle 450ml
Solution Configure

Test Principle For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
