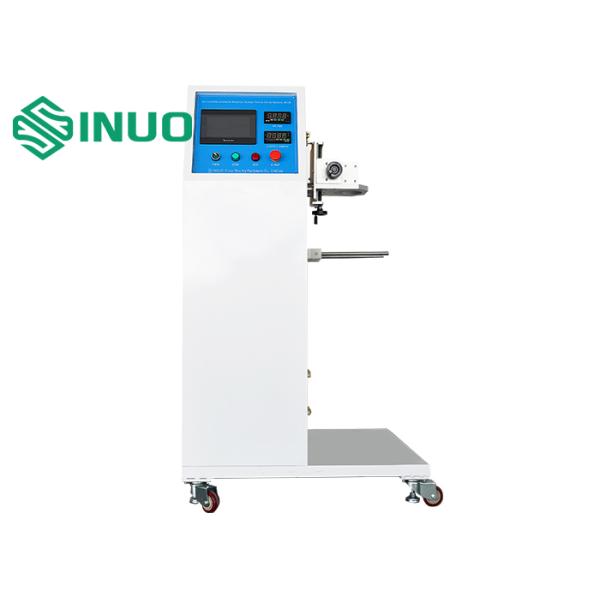

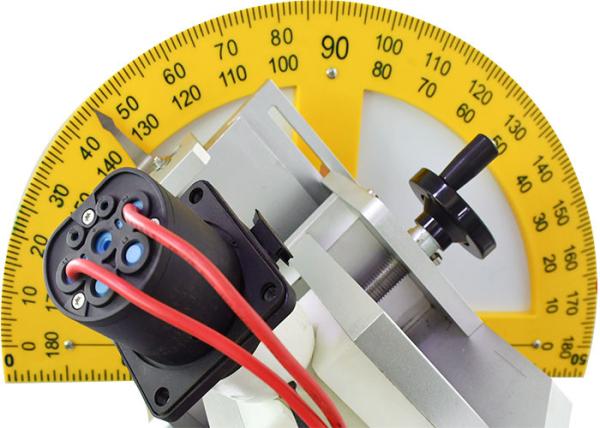

IEC 60309-1 Non-Rewireable Strength Flexing Test Equipment For Electric Vehicle

Product Overview For Non-Rewireable Strength Flexing Test Equipment:

The flexibility testing apparatus is designed and manufactured according to requirements of IEC62196-1: 2020 clause 26.4 figure 20, table 14, IEC60309-1: 2012 clause 24.4 figure 9, etc. It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.

Structure For Non-Rewireable Strength Flexing Test Equipment:

The equipment adopts PLC control and operated by 7-inch colour human-machine interface, uses a servo motor to control the flexing angle. The flexing angle, flexing speed and the test cycles can be preset on touch screen. The test is automatically carried out according to the set parameters. When the test times reach the preset number of test times, the device automatically stops and gives the test completion signal prompt. The test equipment has the advantages of high-precision digital display, high-efficiency digital frequency conversion, precise speed adjustment, six-digit memory setting, multi-function modular fixture, rotating center centering measuring tool, and built-in load which can supply load voltage to test sample during test.

Technical Parameters For Non-Rewireable Strength Flexing Test Equipment:

Test Station Single
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor
Sample Clamping Method Mechanical clamping, the position of clamping point is adjustable
Flexing Angle 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Flexing Rate 0-60 cycles / min, can be preset
Flexing Cycles 0~999999 can be preset, default 20000 cycles
Load Weights 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power External (not included), can work together with the SN224-300V80A, or load cabinet with adjustable voltage between conductors 0-250V and current AC0-800A adjustable should be prepared by user
Test Judgment Judging by the signals given when the current is conducting or not
Equipment Dimensions & Weight W950*D650*H1600mm, the whole machine is about 320Kg
Power Supply Single phase AC220V±10%, 60Hz, 10A
Common Faults and Treatments For Non-Rewireable Strength Flexing Test Equipment:
No. Fault Reason Treatment

1

 Turn on the POWER switch, but the indicator light not turn on The external power supply is not connected Please connect to the external power supply
The fuse is broken Find out the reason and change the fuse.
The indicator light damaged Replace the light

2

 Turn on the POWER switch, Touch screen not work The internal DC24V power supply is in problem Replace the DC24V power supply
Touchscreen damaged Replace the touchscreen
3 Touch screen no response Connection to PLC loose Reconnect
Touchscreen damaged Replace the touchscreen
4 Load power no power supply Load socket damaged Replace the socket
The fuse is broken Change the fuse

5

Press down Start button, but the fixture do not work.

 The display value and preset value of test times are the same Press Count Cleared
The E-STOP button is not reset Release E-STOP button
There is foreign object in the machine, the machinery is stuck Remove the foreign object
It is not under auto test mode Press Start button
Connection to motor loosen Reconnect
Not in starting position Homing
6 Motor rotates but the manipulator does not rotate Check whether the motor output shaft connector is loose Re-connect
Check whether the drive belt is broken or too loose Replace the drive belt
7 Noise Swivel speed low or too high Reset the speed
Connection to motor loosen Reconnect
Weight Configuration Table For Non-Rewireable Strength Flexing Test Equipment:
Weights with hook 20N*1, 25N*1,100N*1
Weight with hole 20N*2, 25N*2, 30N*1
How to combinate the weights:
50N 25N+25N
75N 25N+25N+25N
100N 100N
120N 100N+20N
140N 100N+20N+20N
180N 100N+25N+25N+30N
