IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
Specifications
Brand Name :
Sinuo
Model Number :
SN2204
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set Per Month
Delivery Time :
10 Days
Packaging Details :
Carton
Weights :
1N*2, 50N*2, 50N*1
Force of material foil :
1N
Bracket material :
Aluminum profile
Mandrel material :
Corrosion-resistance metal
Rotating angle :
230 o
Test force :
150N±10N
Height :
500mm
Warranty :
1 year
Description

IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification

Product Information For Metal Mandrel Test Apparatus:

This test apparatus conforms to IEC 62368-1:2018 clause 5.4.4, IEC60950-1:2013 clause 2.10.5.8, Annex AA, figure 14~16, IEC60558-1 Fig6, etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.

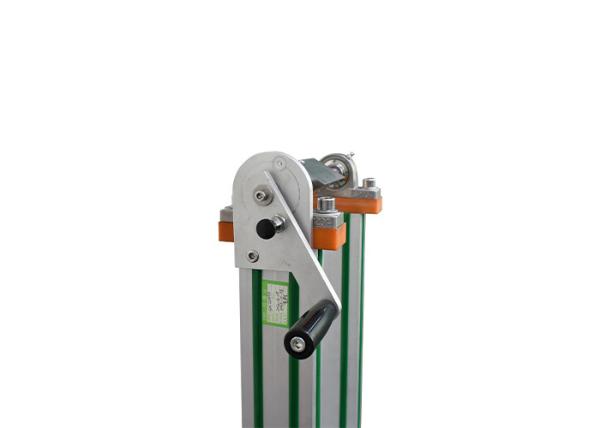

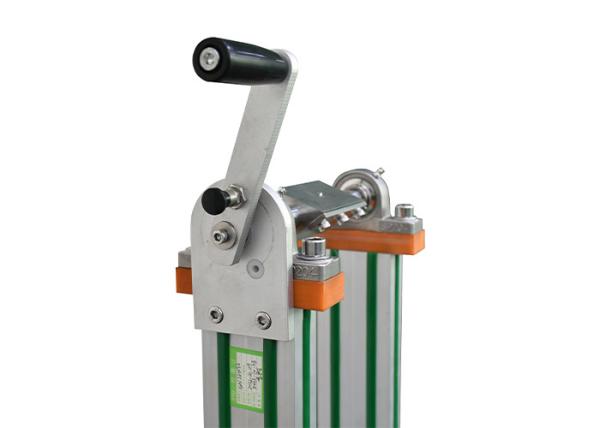

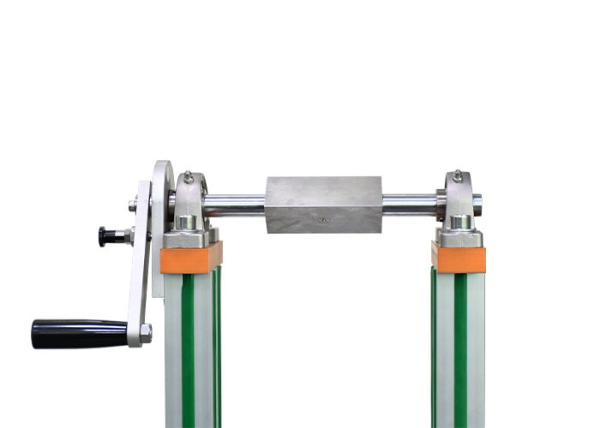

This test apparatus has the mechanical limits in the position of 0o and 230o to make sure the accuracy of the testing angle.

Technical Parameters For Metal Mandrel Test Apparatus:

Applied Standard IEC 62368-1
Clause 5.4.4
Mandrel Material Made of corrosion-resistance metal
Bracket Material Aluminum profile

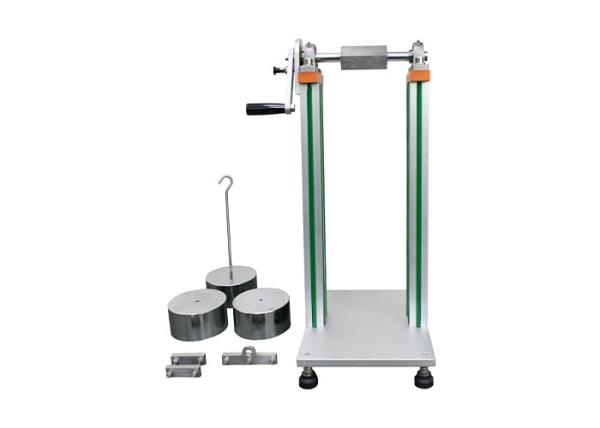

Weights 1N*2,50N*2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen)
Force of the two terminals of material foil 1N (two sets of 1N weights, also the clamping device for metal foil)
Rotating angle of the mandrel 230 o
Height of the mandrel to the bottom of the device 500mm

IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification

IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification

IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
