IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
IEC 60884-1 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs
Specifications
Brand Name :
Sinuo
Model Number :
SN2121
Certification :
Calibration Certificate(cost additional )
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets / Month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Test Stations :
6, with 6 sets of clamps
Flexing Times :
1-999999 (can be preset)
Flexing Rate :
10~60 rpm
Flexing Angles :
45°, 60°, 90°
Breaking indication :
Indicator display
Sample Connecting Wires :
6 PCS
Weights :
10N/20N*6
Dimensions :
870mm*610mm*820mm
Description

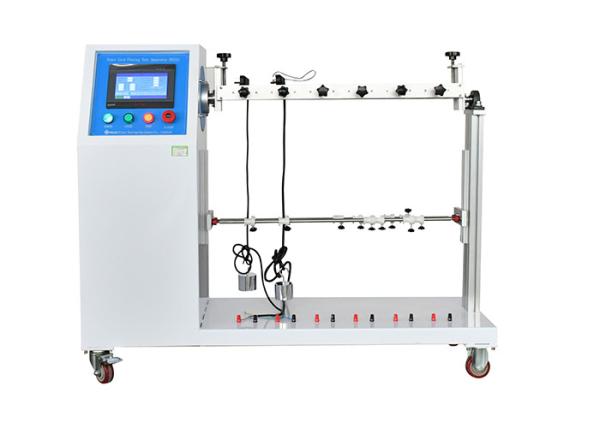

IEC 60884-1: 2022 Power Cord Flexing Test Apparatus For Flexible Cable Plugs

Product Information For Power Cord Flexing Test Apparatus:

The power cord flexing test apparatus meets the requirements of IEC 60884-1:2022 figure 21 clause 23.4, which is used to process the flexing test for the flexible cable of non-rewirable plugs and non-rewirable portable socket-outlets.

Technical parameters For Power Cord Flexing Test Apparatus:

Power Supply AC220V, 50Hz or match the client's site local power supply

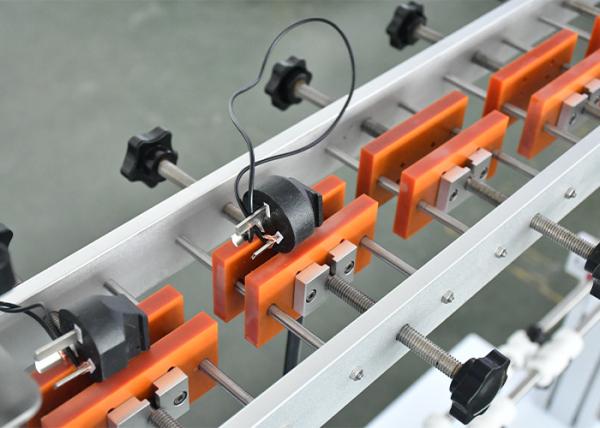

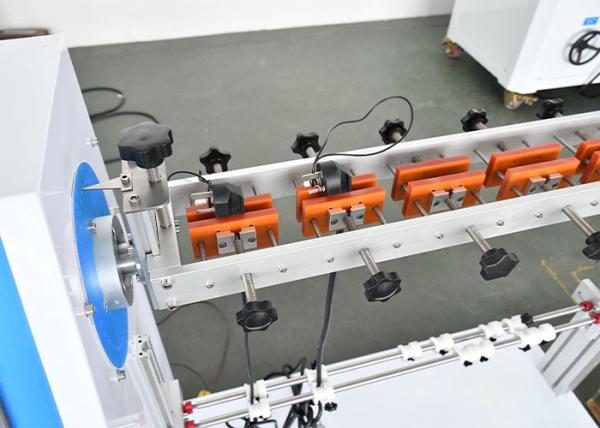

Test Stations 6, with 6 sets of clamps
Flexing Times 1-999999 (can be preset). With 6 independent counters corresponding to each station, and there is a general counter
Flexing Rate 10~60 rpm (can be adjustable)

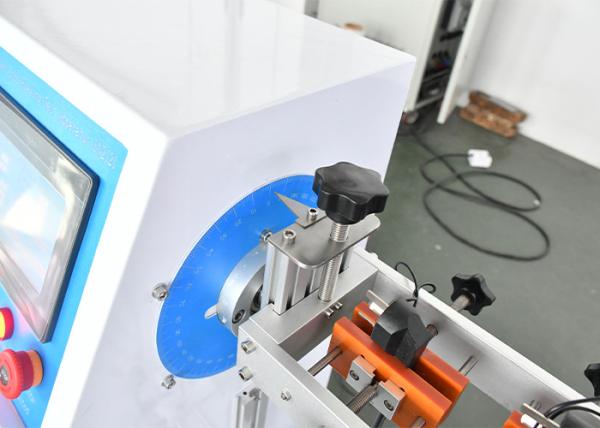

Flexing Angles Swivel angle on either side for 45°, 60°, 90°
Sample Connecting Wires 6 PCS
Weights 10N/20N*6(the weight as per UL requirements is 113g and 284g)
Breaking Indication Indicator display
Dimensions L*W*H=870mm *610mm* 820mm
Conforms to Standard IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620

Mechanical Theory

 The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.

Equipment Characteristics For Power Cord Flexing Test Apparatus:

The test times (up to 999999) can be preset on this test apparatus, and the test can be carried on and the numbers of tests can be calculated automatically. When the test times reach to the preset value, the system will shut down automatically and give out completion signals. Once the test apparatus connects to external load cabinet, it can be used to process test with load.
