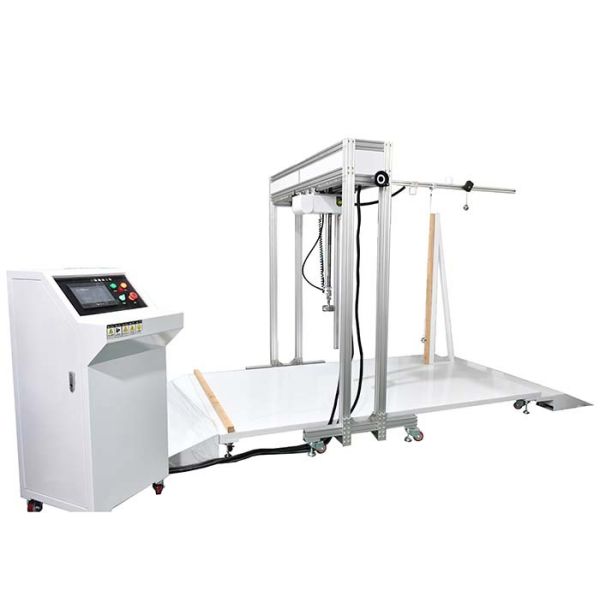

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
Specifications
Brand Name :
Sinuo
Model Number :
SNM04
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Standard :
IEC 60601-2-52
Clause :
Clause 201.9.4.2.4.3
Sample :
Mobile ME equipment
Station :
Single station
Linear stroke :
0-3600mm
Test speed :
0-0.85m/s
Test frequency :
0~999999 times
Threshold :
WDH=1000*80*10mm
Description

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

Product Information:

1. Standard: conform to IEC60601-1:2012, YY9706.252-2021 clause 201.9.4.2.4.3 and 201.15.3.5, IEC60601-2-52:2015.
2. Samples and restrictions: Mobile ME equipment or moving parts of ME equipment.
3. Application: Whether the stress generated by mobile ME equipment or moving parts of ME equipment when subjected to rough handling and movement will cause unacceptable risks to the equipment, its mechanical strength shall be assessed. It is also used for the balance verification test of mobile ME equipment weighing more than 45kg crossing the door frame to test its stability.
4. Test principle: The motor-driven manipulator pushes the sample on the horizontal platform at a speed of 0.8m/s±0.1m/s to carry out the upper step impact test, lower step impact test, door frame impact test, and threshold crossing test.
5. Equipment structure and characteristics: The device includes an extended work surface (track), with a 40mm high step and a 40mm threshold (switching installation) arranged in the middle of the table, and a 40mm wide hardwood at the end; including a servo motor, reducer, and guide rail drive mechanism.

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

Technical Specifications:

Equipment dimensionsAbout: 4000×1300×1850 (mm) W×D×H
equipment weight350kg
Usage environmentPower supply: AC220V±10%/50-60Hz, power 0.75KW
StationSingle station, can be customized
Electrical control methodPLC intelligent integrated control, color human-machine touch interface operation
Test size range

The length is not more than 150cm, the width is not more than 100cm (the distance between casters is not more than 80cm), and the height is not more than 150cm
IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

Drive modeServo motor + precision reducer drive
Specimen clamping methodMechanical clamping
Test items and action processes

1. Impact test on steps: move from left to right and impact the middle obstacle
2. Step-down impact test: move from right to left, push down from the middle obstacle
3. Door frame impact test: move from the center to the right and impact the door frame obstacle.
4. Threshold impact test: move from left to right, impact the middle threshold

Linear stroke0-3600mm, can be preset
Test speed0-0.85m/s can be preset, can be preset (0.8±0.1m/s)
Test frequency0~999999 times, can be preset
On step Impact test obstacle40mm step, located in the middle of the platform, width 1000m
Down step impact test obstacle
ThresholdWDH=1000*80*10mm, fixed with 40mm step, switchable with 40mm step
Door frame impact test barrierWDH=40mm×40mm×1500mm, located at the right end
Safety protectionAdd guardrails around

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test
