IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
Specifications
Brand Name :
Sinuo
Model Number :
SN444
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Control method :
PLC control
Rain pinhole diameter :
Φ0.4mm
IPX3 swing speed :
4 seconds/time (2×120°)
IPX4 swing speed :
12 seconds/time (2×350°)
Water flow :
1-10L/min
Test time :
0.01S～99.9 min
Pressure gauge :
0~0.25MPa
Pinhole angle :
IPX3: 120°, IPX4: 180°
Description

IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test

Product Information:

1. Standard: conform to YY9706.252-2021 clause 201.11.6.5.101, IEC60601-2-52:2009, IEC60598-1:2014, IEC60529:2013.

2. Samples and restrictions: electrical and electronic products, automobile and motorcycle parts, household appliances, communication products, outdoor lighting and signaling devices and other products.

3. Application: test whether electronic and electrical products, automobile and motorcycle parts, household appliances, seals and lamps can ensure good performance of equipment and components in a water-spraying environment. The purpose is to verify the protective performance of the product's shell when exposed to water at IPX3 and IPX4 levels.

4. Test principle: by controlling the water supply flow to ensure that the water spray reaches the standard required speed, the test equipment can be splashed in all directions of the sample shell.

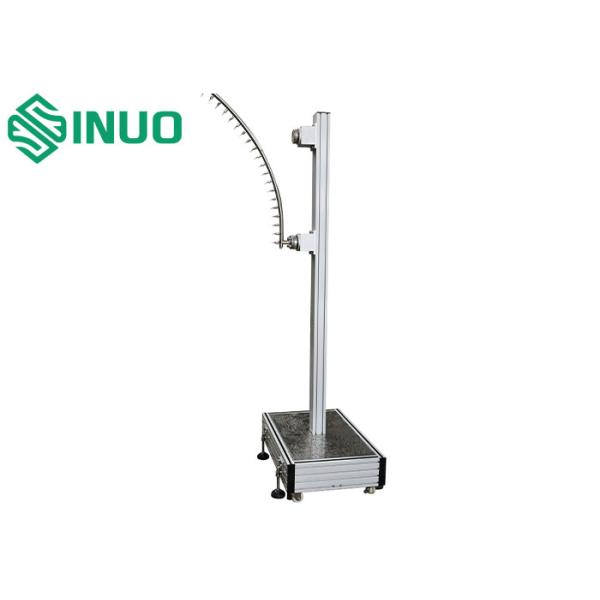

5. Equipment structure and characteristics: This device consists of a swing tube mechanism and an electrical control cabinet. One end of the swing tube mechanism is hung on the wall, and the other end is fixed on the floor support frame. It is driven by a motor to swing left and right. The load turntable has a speed of 1r/min so that all sides of the sample are affected by rain. It is equipped with a water filtration and cleaning device to prevent the pinhole is clogged. This system has an open structure.

Technical Parameters:

Usage environment

Power supply: AC380V±5%/50Hz, 3KVA

Use place: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86~106kpa (860mbar-1060mbar), the ground must be flat, with lighting, with waterproof leakage switch (or socket), water inlet and drainage functions good

Water source: clean water or tap water without impurities, equipped with water cleaning and filtering device
Control and operation PLC and touch screen intelligent control system
Swing tube specifications R200, R400, R600, R800, R1000, R1200, R1400, R1600mm optional, made of stainless steel, standard R1000mm
Rain pinhole diameter Φ0.4mm
Pinhole distribution Angle IPX3: 120°; IPX4: 180°, hole spacing 50mm
Swing speed

IPX3: 4 seconds/time (2×120°);

IPX4: 12 seconds/time (2×350°);
Water flow 1-10L/min adjustable
Test time 0.01S～99.9 minutes can be preset
Sample rotating disk Diameter: Φ600mm; rotation speed 1r/min, can stop at 4 angles, lifting height 350-1000mm;; electrical equipment with load-bearing capacity ≤50kg
Pressure gauge 0~0.25MPa
Water storage system The control box and water storage tank are integrated. A water level float valve is installed in the tank to control water inflow automatically. It also has high and low water level alarm detection to effectively prevent the water pump from drying out due to lack of water and causing damage.
Optional Optional hand-held test device (sprinkler) against dripping water and splashing water (shown in Figure 5)
Safety protection Phase sequence protection, leakage protection, water shortage protection, abnormality protection
Equipment dimensions According to the selection of swing tube

IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test

IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test

IEC 60601-2-52 IPX3/4 Oscillating Tube Rain Test System For Medical Electrical Equipment Test
