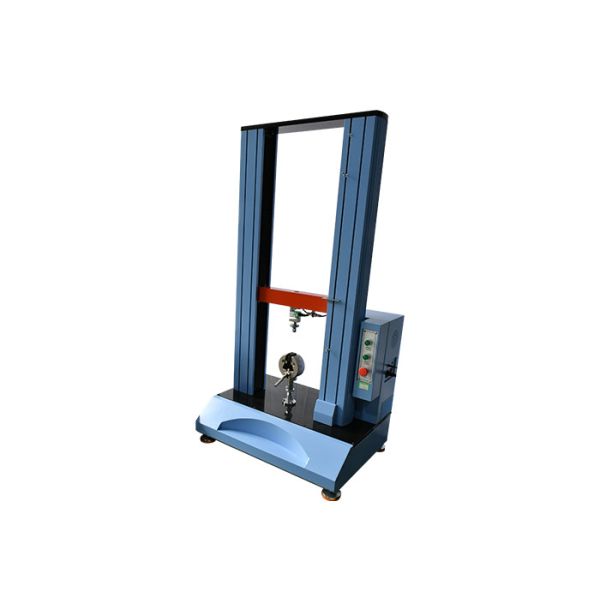

IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals
Specifications
Brand Name :
Sinuo
Model Number :
SNB02C-1000
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
20 Days
Packaging Details :
Plywood Case
Maximum test force :
0~1000kg
Force measurement accuracy :
0.01N
Load analysis :
1/250000
Load accuracy :
±0.2%
Test itinerary :
800mm
Test width :
400mm
Test range :
50-300mm/m
Force time :
0-9999s
Description

IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals​

Product information:

Specimen and limitations: screw-type terminals, threadless terminal blocks and connectors

Test purpose: To examine whether threaded terminals and threadless terminals can withstand the mechanical stress that occurs during normal use. It is mainly used to determine whether the design and structure of thread clamping terminal blocks meet the requirements of not excessively damaging the wire when clamping the wire.

Testing principle: This machine adopts computer control and is widely used in mechanical property testing of rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics and other non-metallic materials as well as metal wires, metal foils, metal plates and metal rods. It is suitable for pull-out test of terminal wires with special clamps. It can print a variety of data, and can make graphic output comparisons based on different data. It has high control accuracy and is easy to operate. It adopts modular design, has a complete range of accessories and is flexible to match.

Equipment structure and features: Equipment dimensions: approximately: 800×500×1600 (mm) W×D×H, equipment weight: 150kg

Usage environment: Power supply: AC220V±10%/50-60Hz 1kW, operating temperature 0-40℃, humidity 30%-90%

Technical parameters:

Maximum test force 0~1000kg/10000N
Force measurement display accuracy 0.01N
Unit switching Kg,N,Lb
Load analysis degree 1/250000
Load accuracy ±0.2%
Displacement switching Mm, cm, in
Displacement measurement display accuracy 0.01mm
Test itinerary 800mm
Test effective width 400mm
Speed test range 50-300mm/min stepless speed adjustment
Constant force time 0-9999s, can be preset
Drive system Using servo motor, Taiwan ZPT ball screw, computer software TM2101
Safety devices Overload emergency stop device, upper and lower stroke limiting device, automatic breakpoint shutdown function
Fixture A set of standard tension clamps and mounting plates are produced according to customer products, with a size of 300mm*250mm
Accessory configuration Computer + printer
Operation method Computer control, using Windows working platform, clear-level operation methods and detailed help documents and prompts make it the simplest and easiest-to-use software in the testing machine industry.
Curve Using multi-thread parallel processing technology, force-displacement, force-time, displacement-time, stress-strain and other curves are simultaneously displayed in real time during the test process. You can switch to the curve screen you want to see at will, and view user settings, etc. The industry's innovative Microsoft Word report format is simple and easy to use. As long as you know how to use Word, you can edit the beautiful reports you want.
