IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
IEC 60811 Stainless Steel 4000cm3 Oxygen Bomb Aging Chamber For Cable Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN1109
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied Clasue :
IEC 60811-1-1 and IEC 60811-1-2
Temperature Range :
Room temperature～200℃
Maximum Working Pressure :
2.5MP
Inner Chamber Material :
Stainless Steel
Temperature Deviation :
±1℃
Temperature Display :
digital display
Inner Volume :
4000mm3
Heater Power :
2.4KW
Description

IEC 60811 Stainless Steel 4000cm3 Air Bomb Tank Oxygen Bomb Aging Chamber for Cable Testing

Equipment introduction:

This oxygen bomb (air bomb) aging test chamber conforms to the standard requirements of IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3, etc.
It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber( plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

Equipment Structure:

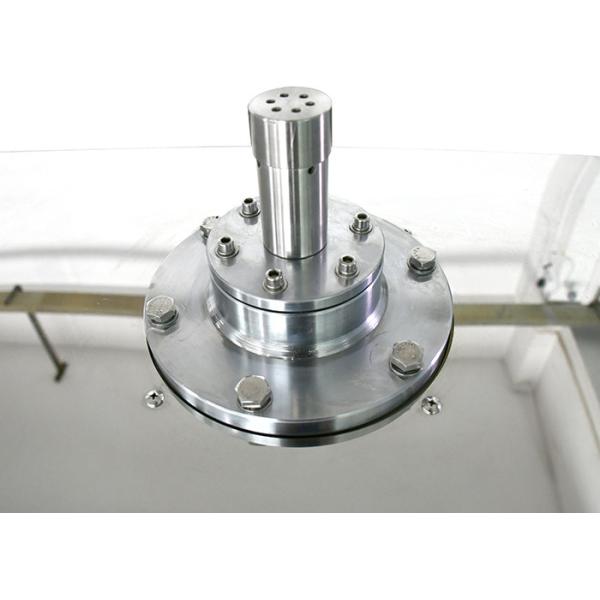

The test chamber is composed of stainless steel tank container, electrical control cabinet.
The tank consists of outside enclosure, insulation layer, heater, temperature aluminum cover, stainless steel pressure tank, the sample tray, automatic overpressure protection devices and other components.

Technical Parameters:

Parameters Name Parameter Data
Power supply AC 220V±10%, 50Hz or match client's local power supply
Maximum Working Pressure 2.5 MPa
Security Burst Pressure 2.7－3.3MP/C㎡
Temperature self-control range Room temperature -200℃
Temperature Deviation ±1℃
Temperature control Automatic control and digital display
Tank materials Stainless steel
Tank volume 4000cm3
Heater power 2.4KW
Sinuo has improved the sealing cover of the chamber, the new locking method is more convenient to operate, and the sealing performance is better than the previous versions.
