Specifications
Brand Name :
Sinuo
Model Number :
SN2123C
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Drum Quantity :
Two drums
Drum Material :
5mm steel and 20mm harden wood
Fall Height :
80mm or customized
Drop Frequency :
10 times/min
Drive Mode :
Geared motor and V-belt
Rotation Speed :
5rpm
Product Name :
Double Drum Impact Test Device
Applied Standard :
IEC60068-2-32, IEC 60312-1, etc
Description

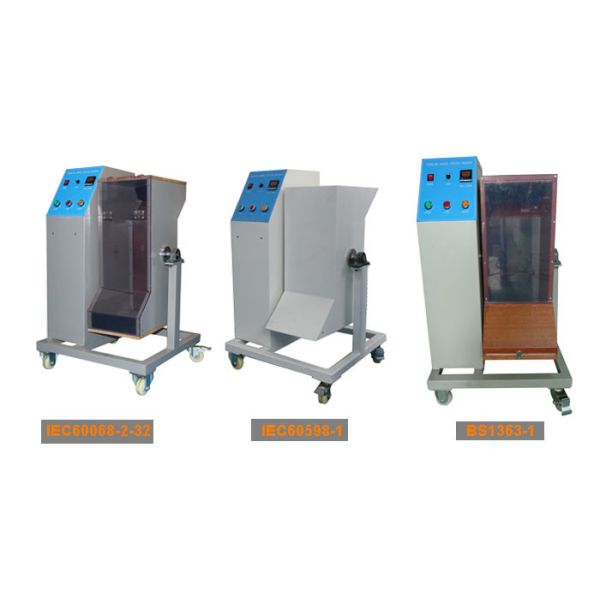

IEC60068-2-32 Double Drum Impact Test Device for Electrical Appliances

Product Overview:

This double drum impact test device is designed and manufactured according to IEC60068-2-32, and required by many standards such as IEC60598-1, IEC60320-1,DIN VDE 0620-1,UL60730, IEC 60312-1.

The drum impact test device consists of double drums, which are made of 5mm steel sheet and 20mm harden wood plates, the rotation of the drum is driven by geared motor and V-belt, there are a 200*300mm window for inspection on each drum, the rotation speed is default to be 5rpm. The test machine can preset the number of drops, and the equipment will automatically stop after reaching the number of times.

When the drum is rotated with a speed of about 5 r/min, the test object drops alternately towards one or the other of the floors of the drum, the height of fall being 80 cm.

Technical Parameters:

Input Power Match client's local power supply requirements
Control Method Electrical control, buttons operation
Drive Mode Geared motor and V-belt drive
Rotation Speed 5rpm
Sample Drop Frequency 10 times/min
Fall Height 800mmm, or can be customized
Drop Times 0~9999 times, can be preset
Drum quantity Two drums
Inspction Window 200mm*300mm

Why choose Us?

Sinuo is a professoional manufacturer of specilized in testing equipment, Sinuo has rich experience in offering tailored testing equipment according to client's requirements and specimens.
