100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN2401
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10 Days
Packaging Details :
Plywood
Applied Standard :
EN 71-1-1988
Applied Clause :
Clause 4.14
Horizontal Steel Surface Size :
215 (length) x280 (width)
Adjustable Drop Height :
0-500mm
Metallic Mass Weight :
1kg ± 0.02kg
Metallic Mass Diameter :
80mm ± 2mm
Description

EN 71-1 100mm Drop Tester Toys Impact Strength Test Apparatus with 1KG Metallic Mass

Product information:

The drop tester conforms to EN 71-1-1988 clause 4.14, EN 71-1-1998 clause 8.7. Adopts impact strength test methods to simulate a child playing or abusing toys or other items to determine the possibility of injury.

Technical Parameters:

Horizontal steel surface size 215 (length) x280 (width)
Adjustable drop height 0-500mm
Impact metallic mass 1kg ± 0.02kg weight, diameter:80mm ± 2mm
Impact distributed area Distributed over an area of 50cm²
Frame material

Steel with chrome-plated surface

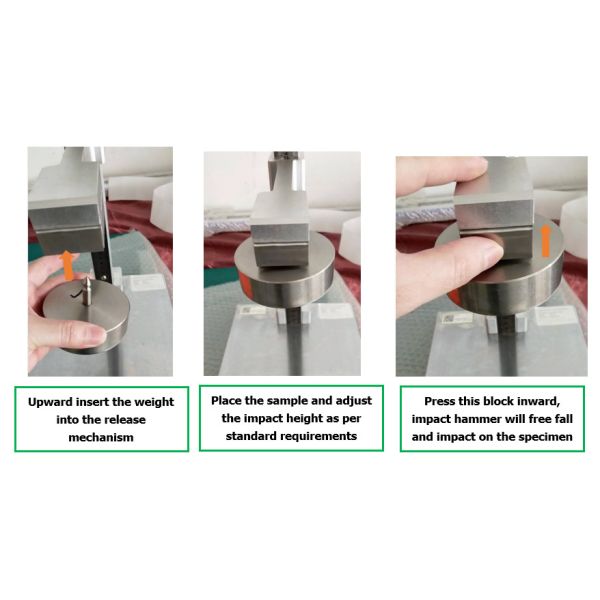

Operation steps:

Please refer to the relevant standards.

Take EN 71-1-1988 clause 4.14 as an example:

Place the toy on a plane, horizontal steel surface and drop a metallic mass of 1 kg, distributed over an area of 50 cm², through a distance of 100mm on to the toy.

Examine whether the casing has broken.
