IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
IEC 60695-10-2 Fig 1 Ball Pressure Loading Device With 1000°C Thermocouple
Specifications
Brand Name :
Sinuo
Model Number :
SN2137B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5 Days
Packaging Details :
Plastic Bag
Ball Diameter :
Ф5mm±0.05mm
Ball Material :
Finished steel in accordance with ISO 3290-1
Applied Pressure :
20N±0.2N
Support Size :
Ф50×100mm
Other Parts Material :
Stainless steel
Applied Standard & Figure :
IEC 60695-10-2 Fig 1
Description

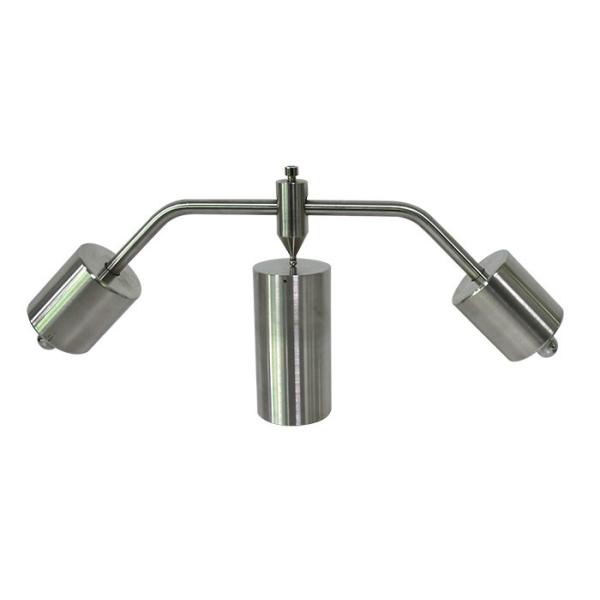

IEC 60695-10-2 Fig 1 Ball Pressure Loading Device

Product Overview:

The Ball Pressure Tester is designed and manufactured according to IEC60695-10-2 Edition 3 2014-2 fig 1. It is parts of non-metallic materials for resistance to heat. It is applicable to electrotechnical equipment, its subassemblies and components, and to solid electrical insulating materials except ceramics.
The tester comes with interchangeable components to allow the user to select their testing preference to Figure 1a or Figure 1b of IEC 60695-10-2. In either configuration, the total force of the loading device is 20N ±0.2N. In the case of using the 5mm ball, the mass of the ball is included in the total force.

The Ball Pressure Tester kit will include a pair of insulated gloves (resistant up to 400°C) and a stand for the pressure device. A type K thermocouple (0~1000°C) can be inserted in the test specimen support.

Technical Parameters:

Load 20N±0.2N
Steel ball material

Finished steel ball for rolling bearings in accordance with ISO 3290-1
Steel ball size Ф5mm±0.05mm / R2.5mm
Other parts material 304 stainless steel
Test specimen support Ф50X100 with Ф2.5 thermometer hole
Thermocouple Type K, 0~1000°C
Insulated gloves Resistant up to 400°C
Standards IEC60695-10-2 Edition 3 2014-2 fig 1, IEC60335, IEC60695 etc.
