IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
IEC 61032 Figure 9 Test Probe 13 With Nylon Handle M6 Thread Hole
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-9
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
3 Days
Packaging Details :
Aluminium Box
Applied Standard :
IEC 61032
Applied Figure :
Figure 9
Metal pin Tip Diameter :
Ф3mm
Metal pin Tail Diameter :
Ф4mm
Handle Material :
Nylon
Handle Length :
20mm
Description

IEC 61032 Figure 9 Test Probe 13

Product Overview:

This probe conforms to the standard requirements of IEC 61032 figure 9 test probe 13, IEC60950 figure 2B, IEC 60335-1 clause 8.1.2, etc. This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.

Probe Dimension:

Metal pin tip diameter (mm) Ф3 0 -0.05
Metal pin tail diameter (mm) Ф4 0 -0.05
Metal pin length (mm) 15 0 -0.1
Guard diameter (mm) Ф25±0.2
Guard thickness (mm) 4
Handle diameter (mm) Ф10
Handle length (mm) 20
Operation:

Please refer to the relevant standards.

Take IEC 60335-1 clause 8.1.2 as an example:

Test probe 13 of IEC 61032 is applied without appreciable force through openings in class 0 appliances, class II appliances and class II constructions, except for those giving access to lamp caps and live parts in socket-outlets.

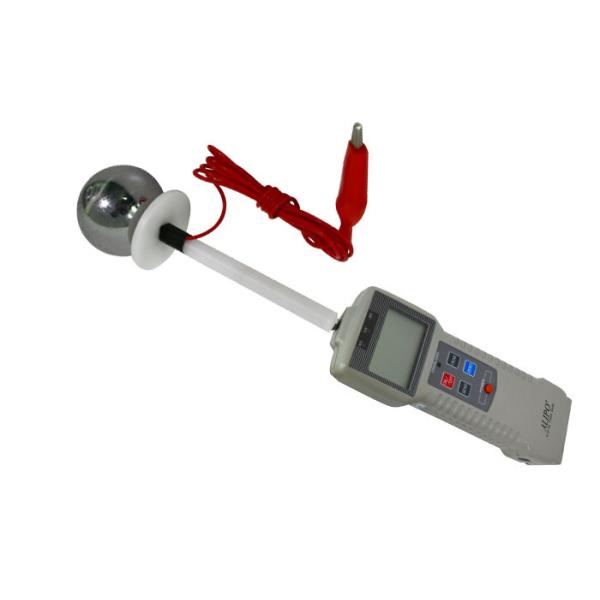

The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:
