Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Steam Sterilizer Moisture Resistance Test Apparatus IEC 60335-2-15 Figure 101
Specifications
Brand Name :
Sinuo
Model Number :
SN1118
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5 Days
Packaging Details :
Plywood
Applied Standard :
IEC 60335-2-15
Applied Figure :
Figure 101
Tube Diameter :
8 mm
Tube Length :
30 mm
Solution Volume :
30 ml
Solution Type :
30ml water containing 1% of NaCl
Description

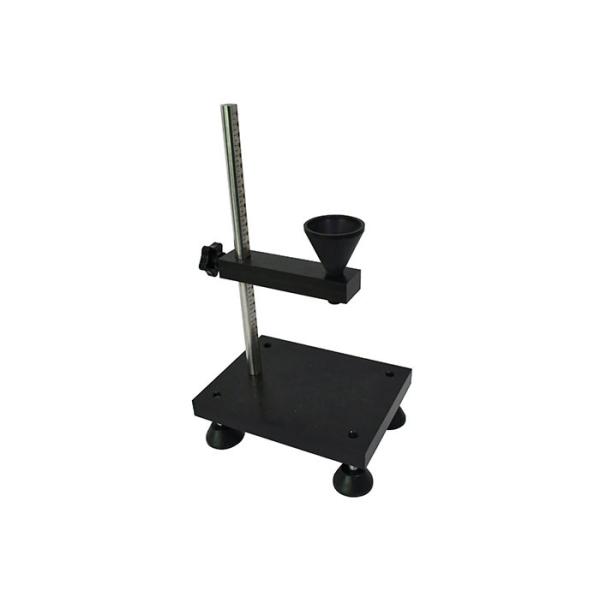

IEC 60335-2-15 Figure 101 Steam Sterilizer Spillage Test Apparatus

Product overview:

The spillage test apparatus is designed and manufactured according to IEC 60335-2-15 clause 15.2 figure 101, and IEC60320-1 clause 14.2 figure B.1.

It is intended for checking the weight of the protective measures against liquid overflow to ensure that the structure of the plug-in connector (cordless electric kettle) is not affected by liquid when it is installed in an alternative voltage base following the manufacturer’s installation instructions.

Technical parameters:

Tube Diameter 8 mm
Tube Length 30 mm
Test Solution Volume 30 ml
Test Solution Type 30ml water containing 1% of NaCl
Distance from the lower end of tube to the appliance 200 mm, adjustable
Apparatus Material Plastic
How to process the moisture resistance of steam sterilizers?

Steam sterilizers are placed on a horizontal surface and ml of water containing approximately 1% NaCl is poured onto the top rim in the most unfavourable place. The solution is poured steadily through a tube having an inner diameter of 8 mm over a period of 2 s, the lower end of the tube being 200 mm above the appliance.
