IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
IEC 60335-1 Clause 22.11 Rigid Finger Test Probe 11 With 0~75N Force Range
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-7T
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
3~5 Days
Packaging Details :
Aluminium Box
Standard :
IEC 60335-1
Clause :
Clause 22.11
Figure :

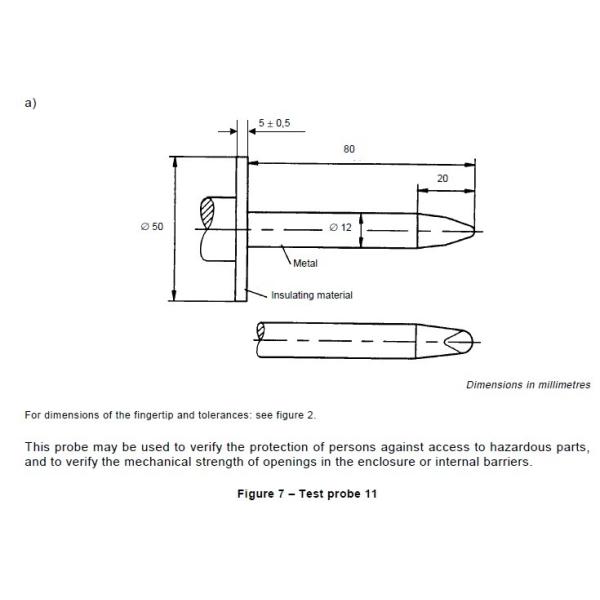

IEC 61032 figure 7
Probe Material :
Stainless steel
Handle Material :
Nylon
Force Range :
0~75N
Description

IEC 60335-1 Clause 22.11 Rigid Test Finger IEC 61032 Test Probe 11 with 0~75N Force Range

Standards & Clauses:

Conforms to IEC 60335-1 clause 22.11, IEC 60065:2014 clause 9.1.7, IEC61032 figure 7 test probe 11, etc.

Samples and Restrictions:

Non-detachable parts of household appliances, electrical accessories, lamps, etc.

Application:

It is used to check non-detachable parts that protect against access to live parts, moisture or contact with moving parts shall be fixed witha reliable manner and withstand the mechanical stress ocurring during normal use.

Test Process:

A force is applied without jerks for 10 s in the most unfavourable direction to parts likely to be weak. The force is as follows:

- pull force, 50N;

- pull force:

  • if the shape of the part is such that the fingertips cannot easly slip off, 50N;
  • if the projection of the part that is gripped is less than 10mm in the direction of removal, 30

The push force is applied by test probe 11 of IEC 61032.

Technical parameters:

Parameters /Model SN2210-7T
Name Rigid test finger with 75N force
1 20 0 -0.05
2 80±0.2
3 R2±0.05
4 S4±0.05
5 37o 0 -10’
6 14 o 0 -10’
7 Ф12 0 -0.05
8 ----
9 ----
10 0-75N force
