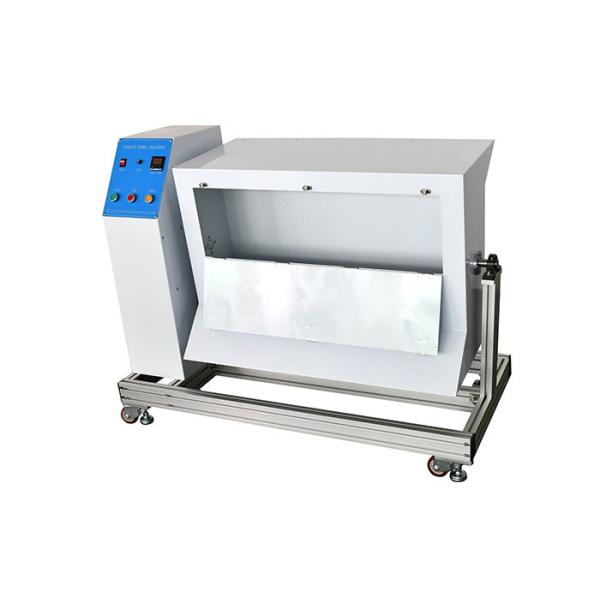

IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
IEC 60598-1 Tumbling Barrel For LED Lamp Drop Testing Equipment
Specifications
Brand Name :
Figure 25
Model Number :
SN2123B1M
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10 Days
Packaging Details :
Plywood
Applied Standard :
IEC 60598-1
Applied Clause :
4.13.6
rotation Speed :
5rpm
Fall Frequency :
10 time per min
Fall Height :
500 mm
Barrel Width :
Can Be Customized
Description

High Quality Tumbling Barrel Drop Test Machine /Rolling Drop Tester IEC60320-1

Overview

This tumbling barrel test apparatus conforms to the standard requirements of IEC 60598-1 clause 4.13.6, figure 25. This device is suitable for checking whether plug-ballast / transformers and mains socket-outlet-mounted luminaires have adequate mechanical strength.

The tumbling barrel part of this test apparatus fully meets the requirements of IEC60598-1 figure 25, the test times can be preset, the test apparatus will automatically stop when the set test times completed, the whole operation of this test apparatus is easy.

Technical parameters

Tumbling Barrel rotation speed 5rpm (default before factory)
Fall frequency 10 time per min
Material 3mm high quality steel plate
Test times 0~9999 can be preset
Fall height 500 mm
Barrel width 1000 mm (in order to be compatible with user’s big specimens)
Barrel number Single
Application Plug-ballast/transformers and mains socket-outlet-mounted luminaires
Standards IEC 60598-1 clause 4.13.6, figure 25
Power supply 220V,50Hz

3 Test procedures and operation steps (Extracted from IEC 60598-1 clause 4.13.6)

Plug-ballast/transformers and mains socket-outlet-mounted luminaires shall have adequate mechanical strength.
Compliance is checked by the following test, which is made in a tumbling barrel as shown in Figure 25.
The barrel is turned at a rate of five revolutions per minute, ten falls per minute thus taking place.
The sample falls from a height of 50 cm onto a steel plate 3 mm thick, the number of falls being:
– 50 if the mass of the sample does not exceed 250 g;
– 25 if the mass of the sample exceeds 250 g.
After the test, the sample shall show no damage within the sense of this standard, but it need not be operative and any damage to the glass bulb shall be ignored. Provided that the protection against electric shock is not affected, small pieces which may have broken off the
sample are ignored.
Distortion of pins and damage to the finish and small dents which do not reduce the creepage distances or clearances below the values specified in Section 11 are ignored.
