Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Programmable Electrical Appliance Hydraulic Pressure Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN1125-42Mpa
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood
Pressure Range :
Can be customized
Medium Temperature :
Can be customized
Test Station :
Can be customized
Water Tank :
Stainless Steel
Air Source :
0.2-0.8MPa
Boosting Rate :
0.5-2.5MPa/S adjustable
Control Software :
Labview software
Control Method :
Computer
Description

IEC 60335 Comprehensive Hydraulic Pressure Test System

Product information:

This hydraulic pressure test system can match many standard testing requirements, such as:

IEC 60335-2-5 cl.22.101 1.2 MPa or higher

IEC 60335-2-7 cl.22.101 2.0 MPa or higher

IEC 60335-2-21/35 22.47 twice the rated pressure (1.4MPa common from 0.6MPa inlet pressure, 2MPa for open water heater), 22.103 0.1MPa from rated of PRV

IEC 60335-2-24 cl.22.7, etc.

Technical parameters

Pressure range

0.5-32Mpa or 42Mpa

(stepless adjustable, can be customized)

 Test medium Clean liquid water
Test station 1 station (can be customized) Allowable medium temperature RT+5°C-80℃ (can be customized)
Power source Gas-liquid booster pump Drive air pressure 0.2-0.8Mpa
Pneumatic duplex UFRL04 Outlet flow 0.5L/min
High pressure pipe joint Stainless steel tube, ferrule Solenoid valve Sanlixin
Clean water tank Stainless steel Electronically controlled proportional valve SMC
Control method Computer High pressure gauge KEMAI
Max. pressure test 32Mpa Computer Advantech Industrial Computer
Chamber appearance Q235 spray treatment

The typical test procedures equipped are:

① Constant speed boost-blasting;
② Constant speed boost-hold pressure-blasting;
③ Constant speed boost-pressure hold-pressure relief;
④ Constant speed boost-pressure hold-constant speed boost-pressure hold-until blasting (incremental boost).

Programmable Electrical Appliance Hydraulic Pressure Test Equipment

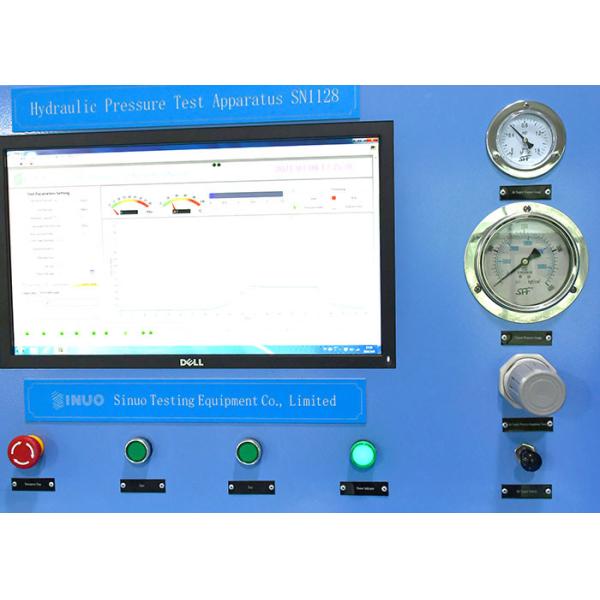

Control features:

The software is written by force control configuration software or LABVIEW (computer control)

Realize the computer control function, operator can freely set the water filling and exhaust time, the pressure holding time, the inflation cleaning time, and the test pressure. During the experiment, operator can arbitrarily set a single or multi-stage pressure holding test. The speed can be kept constant, stepless adjustment can be realized, test data and curve parameters can be displayed in real time, test results can be automatically saved, and test reports can be printed at will. (computer control).

Programmable Electrical Appliance Hydraulic Pressure Test Equipment
