EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
Specifications
Brand Name :
Sinuo
Model Number :
SN1201A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied Standard :
EN 16825: 2016
Electrical Control :
Mitsubishi PLC
Display Mode :
7" touch screen
Drive Mode :
Cylinder
Door Open Angle :
0-90°
Door Open Speed :
0-10 times/min
Test Stations :
Can be customized
Description

EN 16825 Refrigerated Storage Cabinets Door Open Close Test System

Product overview

The refrigerated storage cabinets door drawer open and close test equipment is designed and manufactured according to EN 16825:2016 standard and customer customized requirements, it is used for the durability test of the vertical door of the vertical refrigerated storage cabinets, and also used for the door opening and closing actions in conjunction with the energy consumption test. It is a dedicated fully automated test equipment, suitable for testing and certification agencies, factory laboratories and other testing departments.

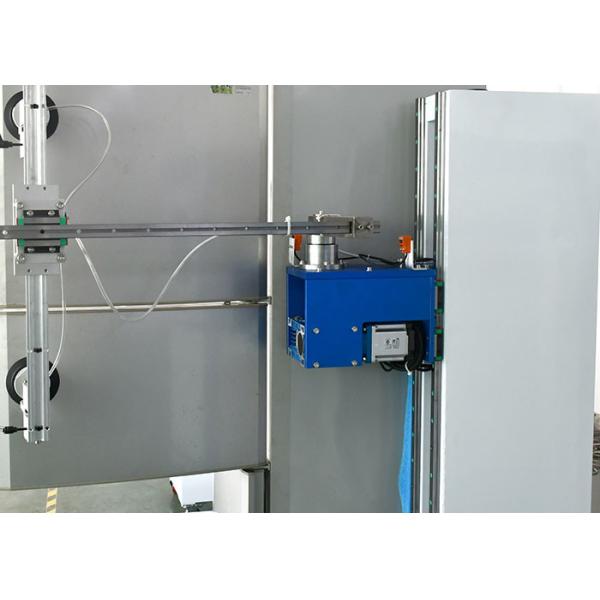

This equipment adopts PLC intelligent control and standard color LCD touch screen, it is equipped with position adjustable actuators and vacuum suction cups to absorb the surface of door. The test angle, speed, and door opening and closing time can be preset, so as to truly simulate the opening and closing actions, achieving an intelligent control method and multiple functions in one machine.

Technical parameters

No: Item Contents
1 Input power supply Match client's local power supply requirements
2 Electrical control Mitsubishi PLC
3 Opertation Weinview 7” touch screen
4 Drive Cylinder
5 Suitable samples

Max. 2 vertical sections, and each vertical section has 1 door

(Or can be customized)
6 Column

Left column of door opening and closing, right column of door opening and closing, each column contains a lifting mechanism, which can adjust the height of the manipulator to match the door opening and closing position

(Or can be customized according to specimen types and quantities)
7 Manipulator

Left manipulators for door opening and closing :1 set (arranged on the column of door opening and closing);

Right manipulators for door opening and closing :1 set (arranged on the column of door opening and closing);

(Or can be customized according to specimen types and quantities)
8 Adsorption structure

Vacuum suction cup, continuous and stable adsorption, will not fall off, each set of manipulator is equipped with one set

(Or can be customized according to specimen types and quantities)
9 Door opening and closing times Can be preset on touch screen, 0-999999 adjustable, automatically stop testing after the preset test times are reached
10 Door opening and closing angle 0-90°can be preset on the touch screen , can be adjustable
11 Door opening and closing angle dwell time Can be preset on the touch screen,0-99999.9S can be adjustable
12 Door opening and closing speed 0-10 times/min, can be preset on the touch screen , can be adjustable
13 Door opening and closing interval time Can be preset on the touch screen, 0-99H59M59S can be adjustable
14 Door opening and closing total test time Can be preset on the touch screen, 0-99H59M59S can be adjustable
15 Auxiliary positioning mechanism for samples One set, fixed the distance between the refrigerated storage cabinet and the test equipment
16 Test contents Door opening and closing
17 Protection Safety protection such as leakage, short circuit and overload
18 Equipment overall dimensions WDH=approx. 1300×900×2000mm
19 Equipment weight 180kg

Working principle and equipment structure

Working principle

The opening and closing of the door adopts a double-cylinder structure, the opening action is completed by one cylinder, and the closing action is completed by another cylinder. The opening cylinder is softly connected to the vacuum suction cup, and the closing mechanism has an angle limit function.

Equipment Structure

It adopts column structure, it is equipped with a two-station door opening and closing column structure. Each column contains one set of door opening and closing mechanisms, which can meet the test of a refrigerated storage cabinet with one vertical door in two vertical directions. The structure can be customized according to client's specimen's types and quantities.
