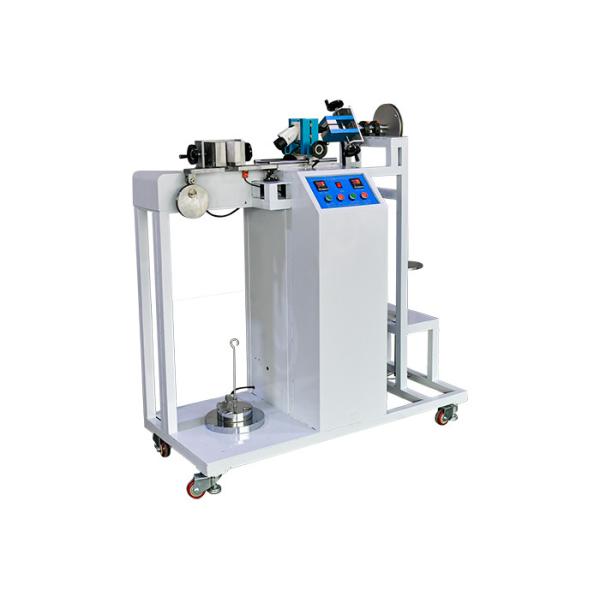

IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
IEC62196-1 Electric Vehicle Connector Pull Force And Torque Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN1107
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1 set per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied Standard :
IEC62196-1: 2020
Applied Clause :
Clause 25.3
Applied Figure :
Figure 17
Test Contents :
Pull Force and Torque
Control Method :
Button
Drive Mode :
Motor and cylinder
Torque Arm :
100mm
Pull Frequency :
1 cycle/s
Description

IEC62196-1 Electric Vehicle Connector Pull Force and Torque Test Equipment

Equipment introduction:

This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.

It is designed and manufactured according to IEC62196-1: 2020 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.

Equipment Principle and Structure:

Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism, the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.

Technical Parameters:

Operation Method Button operation
Drive Mode Motor and cylinder
Pull Force Weights

40N*2, 50N*1, 60N*1, 110N*1,250N*1

Can achieve 160N, 200N, 240N, 250N,500N pull force
Torque Weights

6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1

Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque
Torque Arm Ф200mm
Pull Frequency 1 cycle/s
Pull Cycles 1-999999 cycles, can be preset, default 100 cycles
Torque Applied Time 0-99999.9S, can be preset, default 1 min
Fixture One set of universal fixtures
Equipment Dimensions & Weight L 1560mm*W 600mm*H 1530mm, approx. 220KG
Power Supply Single phase AC220V±10%, 60Hz, 10A

How to select the corresponding pull force weight and torque weight?

Choose the proper weight according to following table:

Rated current

A

Pulling force

N

Torque

Nm

 Pull weight+ torque weight selection

Maximum displacement mm
10-20 160 0.6 160N+6N 2
32 200 0.7 200N+7N 2
63 240 1.2 240N+12N 2
80 240 1.2 240N+12N 2
125 240 1.5 240N+15N 2
200 250 2.3 250N+23N 2
250 500 11 500N+110N 5
400 500 11 500N+110N 5
