IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
IEC 60529 IPX3/4 Spray Nozzle With Digital Flowmeter IP Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN446B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets Per Month
Delivery Time :
3 Days
Packaging Details :
Carton Box
Applied Standard :
IEC 60529:2013
IP Code :
IPX3/4
Spray Nozzle Outer Diameter :
Ф102mm
Spray Nozzle Spherical Diameter :
SФ75.5mm
Spray Nozzle Material :
Brass
Test Flow :
10L/min±5%
Flowmeter Measuring Range :
8L/min ~120L/min, digital
Moving Shield :
Made of aluminum, detachable
Description

IEC 60529 IPX3/4 Spray Nozzle with Digital Flowmeter IP Test Equipment

Overview:

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.

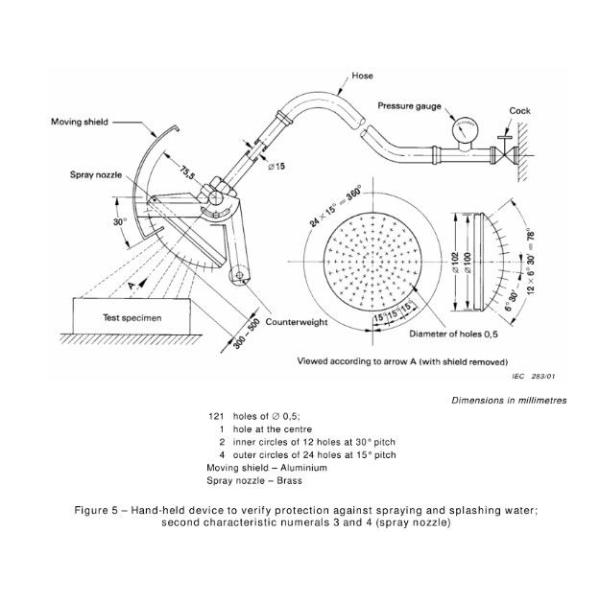

It meets the requirements of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.

Technical Parameters:

Parameters of Spray Nozzle Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Required Water Flow 10L/min±5%
Pressure 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield Made of aluminum, can be detachable
Flowmeter 8L/min ~120L/min, digital display

Structure:

This device is manufactured according IEC 60529 figure 5, with a digital flowmeter and a pressure gauge on the handle, it can achieve IPX3 / IPX4 hand-held spraying test by connecting water pipe (water pipe should be prepared by user).

It ensures that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.
