Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Camera Lens Rotating Torque Testing Equipment PLC Control 0.2N.M
Specifications
Brand Name :
Sinuo
Model Number :
SNFB01
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
1 Month
Packaging Details :
Plywood
Control Mode :
PLC
Display Mode :
7" touch screen
Test Station :
Single station
Rotation Speed :
10-30 times/min
Weight :
10 N
Torque :
1.2kgf*cm
Motor :
Panasonic sero motor
Clamp :
Customized
Description

Camera Lens Rotating Torque Testing Equipment

Product overview:

The testing machine is designed and manufactured strictly according to customer's specific requirements. It is driven by Panasonic servo motor, equipped with Mitsubishi PLC, 7-inch touch screen. It is a dedicated high-end torque test equipment with threaded lens sleeve.

This testing machine is mainly used to verify the thread torsion strength of the lens with a threaded lens sleeve, and verify its fatigue resistance after a certain number of rotation.

Working principle:

Use a servo motor to drive the fixture holding the lens to rotate a certain number of times N (N=thread length*10/thread pitch) at a speed of not less than 20 times/min, and insert it into the corresponding threaded sleeve. The cylinder can bear a torque greater than 1.2kgf*cm through a combination of fixed pulleys and weights.

Technical Parameters:

No.:

Item

Specifications

1

 Input power supply Can be customized

2

 Electrical control PLC

3

Operation

 7” color touch screen

4

Drive

 Panasonic servo motor

5

 Test station

1

6

 Clockwise Counterclockwise rotation cycles 0-999999, can be preset

7

 Rotation speed 10-30 cycles /min

8

 Sleeve thread specification Provided by client

9

 Fixture out diameter for sleeve 40mm (The radius of the torque wheel is 20mm)

10

 Weight for torque 10N (Achieve torque 0.2N.m, greater than 1.2kgf*cm), other weights can be customized

11

Fixture type

 Two types of external clamping and pin clamping, hardness ≥HRC28, smoothness higher than Ra3.2, suitable for specimens with a maximum outer diameter of less than 40mm
Equipment structure:

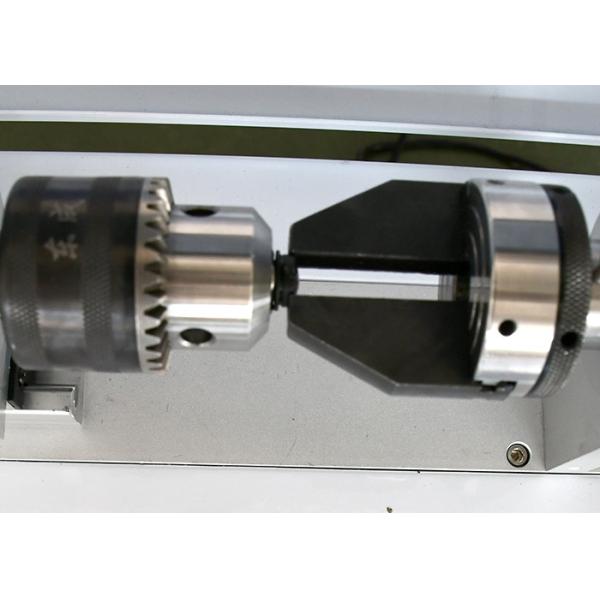

1. The sleeve end is matched with the spline sliding sleeve shaft to ensure that the axial direction can move freely, matching the screw-in and screw-out position of the screw.

2. Lens fixture: For the clamping outer circle without card slot, the clamping point width is 1mm; for the lens with card slot, insert it directly into the card slot. Fixture hardness≥HRC28, smooth finish is higher than Ra3.2.
