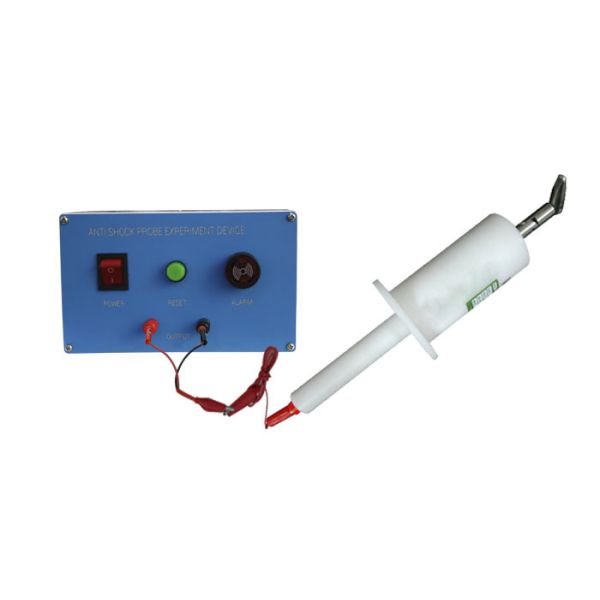

SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
SS Electrical Appliance Tester IEC 60335-1 Clause 20.2 Similar To Test Probe B But Having A Ф50mm Circular Stop Face
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-2A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
3~5 Days
Packaging Details :
Carton Box
Test Standard :
IEC 60335-1 Clause 20.2
Stop Face :
Ф50mm Circular
Applied Force :
Can be customized
Probe Material :
Stainless steel
Baffle Material :
Nylon
Accessory :
M6 thread and banana clip
Description

IEC 60335-1 Clause 20.2 Similar to Test Probe B but Having a Ф50mm Circular Stop Face

Standards & Clauses:

IEC 60335-1 clause clause 20.2.

IEC61032:1997 “Protection of persons and equipment by enclosures-Probe for verification”

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)”

Samples and Restrictions:

Household appliances, electrical accessories, lamps, etc.

Application:

To verify

a) protection of persons against access to hazardous parts inside the enclosure；

b) protection of the equipment inside the enclosure against ingree of solid foreign object.

Test Principle:

The similar to test probe B of IEC 61032 but having circular stop face with a diameter of 50 mm is used to distinguish the different protection levels of the electrical enclosure. After the current or force is applied to the probe, whether the probe can contact the live parts or internal parts, to determines whether the specimen is qualified or not.

Structure:

This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle, or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push force gauge).

Technical Parameters:

Parameters /Model SN2210-2 (Optional)

SN2210-2A

SN2210-2B

(Optional)

SN2210-2T

(Optional)
Name Standard test finger Circular baffle test finger Large baffle test finger Standard test finger with force
1 30±0.2 30±0.2 30±0.2 30±0.2
2 60±0.2 60±0.2 60±0.2 60±0.2
3 80±0.2 80±0.2 100±0.2 80±0.2
4 180±0.2 180±0.2 ---- 180±0.2
5 R2±0.05 R2±0.05 R2±0.05 R2±0.05
6 S4±0.05 S4±0.05 S4±0.05 S4±0.05
7 37o 0 -10’ 37o 0 -10’ 37o 0 -10’ 37o 0 -10’
8 14 o 0 -10’ 14 o 0 -10’ 14 o 0 -10’ 14 o 0 -10’
9 Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05
10 Ф50 Ф50 ---- Ф50
11 20±0.2 ---- ---- 20±0.2
12 Ф75±0.2 Ф75±0.2 Ф125±0.2 Ф75±0.2
13 5±0.5 5±0.5 ---- 5±0.5
14 ---- ---- ---- 10-50N force
15 IEC61032.1 IEC60335-1 IEC60335-2-14 IEC60529
