Specifications
Brand Name :
Sinuo
Model Number :
SN3312
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Tailored
Payment Terms :
T/T
Supply Ability :
1 Set Per Month
Delivery Time :
2 Months
Packaging Details :
Plywood
Test Benches :
2
Test Corners :
6
Thermocouple :
T type -20~150℃
Data Collector :
Yokogawa GM10
Frequency Power :
15kVA
Control :
Computer
Description

Energy Efficiency Grades Testing System for Household Microwave Ovens Induction Cookers

Overview:

This testing laboratory provides test conditions for energy efficiency testing of induction cookers and microwave ovens, meets following standard requirements:

GB 21456-2014 Minimum allowable values of the energy efficiency and energy efficiency grades for household induction cookers

GB 24849-2010 Minimum allowable values of the energy efficiency and energy efficiency grades for household and similar microwave ovens

Standards:

Can be designed according to the following standards:

► GB 21456-2014

► GB 24849-2010

► Other international standards

Types of UUT :

Household induction cookers

Household and similar microwave ovens

Room Size:

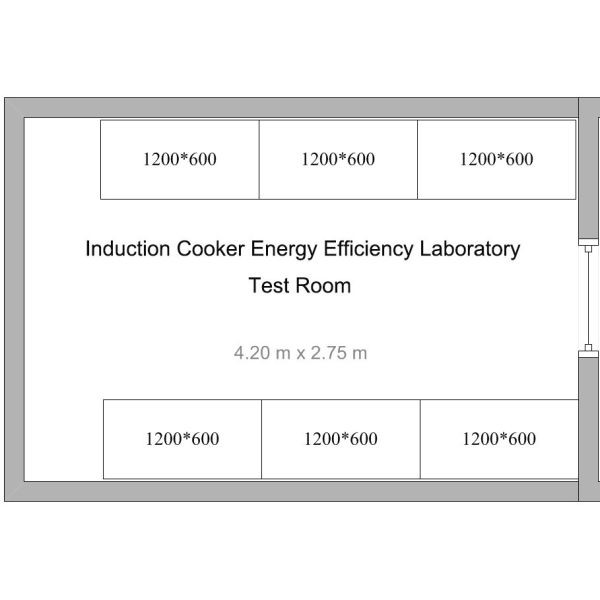

4.2M (Length) *2.75M (Width), The schematic layout is as follows:

Note: The air-conditioning environment in the room is realized by the existing air-conditioning of User, and the structure of the house is completed by User.

Configuration List:

No.: Name Specification QTY Unit
Test Stations
1 Test benches

Plates, with drawers and cabinets

(a set of 3 stations)

 2 SET
2 Test corners 1M* 0.8M* 0.6M (H*L*W),20mm thickness plywood, surface coated with a matt black finish 6 PC
Electrical Testing
4 Thermocouple T type -20~150℃ Accuracy 0.1class 40 M
5 Isothermal terminal Omega 12 GROUP
6 Electrical parameter meter (single phase) WT310E 6 SET
7 Test water temperature Pt100, A class, 0~150℃ 6 PC
8 Data collector Yokogawa GM10 (two channels per each station) 2 SET
9 Frequency Power 15kVA 1 SET
10 Power box and terminal box Stainless steel 6 SET
11 Electrical parts and wire conduit, etc. Air switch, contactor, relay, power supply switch, etc. 1 SET
12 Test software The latest version, matching hardware transformation, in line with the latest standards 1 SET
13 Computer Lenovo business machine 1 SET
14 UPS Santak 500VA 1 SET
15 Electronic scale (±0.1%), 5g resolution,20kg measuring range 2 SET
