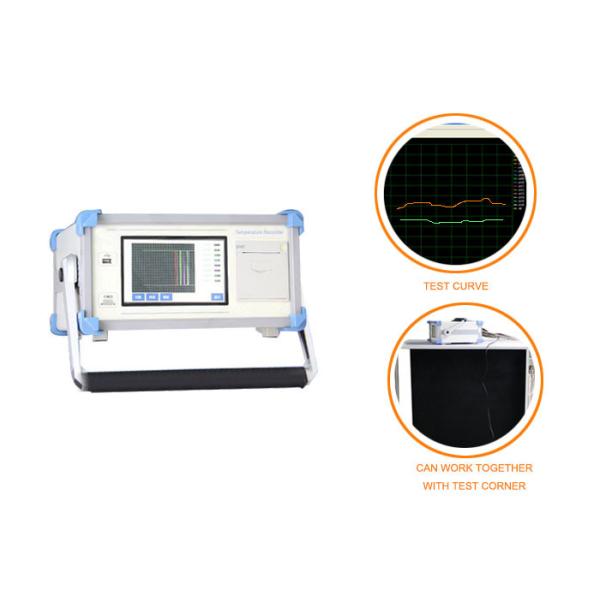

16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder
Specifications
Brand Name :
Sinuo
Model Number :
SN2206
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
1 Month
Packaging Details :
Plywood
Test Channels :
Can be customized
Measuring Range :
-50 ～1000 ℃
Temperature Accuracy :
±0.3% rdg+ 1℃
Temperature Resolution :
0.1℃
Applied Standard :
IEC 60335-1: 2016
Product Name :
Temperature Recorder
Description

16 Channels Temperature Measurement and Recording Instrument 1000 ℃ Temperature Recorder

Standards & Clauses:

IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 11

Samples and Restrictions:

Household and similar electrical appliances such as microwave oven, refrigerator and etc.

Application:

It is used to measure the temperature rise of various electrician and electrical appliances during normal use.

Test Principle:

Monitoring the real-time temperature by composing a temperature measuring circuit through electronic components.

Structure:

Desktop type

Equipment dimensions: approx.: 320 × 300 × 150 (mm) W × H × D

Equipment weight: 5kg

Use Environment​:

Power supply:AC220V±10%/50-60Hz or match client's local power supply

Working temperature 0-40 ° C, humidity 30%-90%

Technical Parameters:

Channels 8 channels, 16 channels, 32 channels, optional or can be customized
Electrical Control Method 7-inch humanized touch interface operation, the temperature data and temperature rise curve can be displayed on the interface
Measurement Accuracy

±0.3% rdg+ 1℃

Resolution: 0.1℃

Measuring range:-50 ～1000 ℃
Test Software Content

Collect and store temperature data and draw temperature curve
Standard Configuration With RS232 serial port for serial communication with computer
Configure the micro printer to print multiple temperature data at regular intervals. The print measurement interval can be set by the user.
Configured according to the number of stations, 2 meters / strip of American imported K-type thermocouples. (temperature range -50 to 260 ° C, wire diameter 0.522 mm)
With USB storage function, there is a 8GU disk, test data can be stored in real time and exported through software
With temperature probe, it can be operated with power (within 250V) without damaging the instrument itself.
The upper and lower limit alarm functions are optional
