300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven
Specifications
Brand Name :
Sinuo
Model Number :
SN8811
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 Sets Per Month
Delivery Time :
1 Month
Packaging Details :
Plywood
Temp. Range :
RT ~ 300 ° C
Temp. Control :
PID
Temp. Resolution :
0.1℃
Temp. Fluctuation :
±1℃
Distribution Error :
±2.5℃
Air Circulation :
Natural ventilation
Description

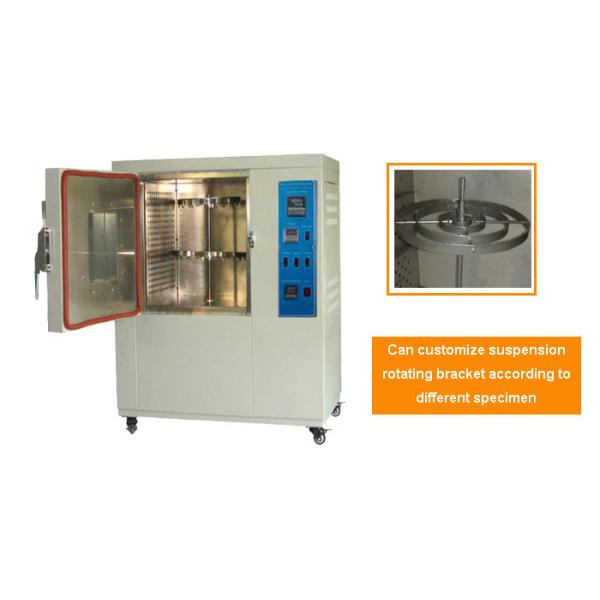

300 ° C Natural Circulation Air Ageing Heating Cabinet 240L Heat Resistance Testing Oven

Overview:

The natural ventilation ageing test chamber is suitable for the footwear industry, leather industry, electric wire industry, electronics industry, etc., and is used to study the physical property changes of various test pieces under a heating in a fixed time; the function of the hot air circulation ensures the uniform distribution of temperature.

It can meet heat resistance test or stress relief test as per many standards requirements, such as IEC60884-1:2013, IEC60950-1:2013, etc.

Features:

1. Microcomputer electronic digital control mode is adopted, it is precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. Heating adopts natural circulation (convection wind). The air supply method has a rapid temperature rising speed and uniform distribution.

4. With P.I.D. control system, and double over-temperature protection, it is safe and reliable.

5. The temperature setting is simple, and the operation is much convenient.

6. Attachment turntable, the height is adjustable.

Technical Parameters:

1 Temperature range

Normal temperature RT ~ 300 ° C

(can be customized)
2 Inner chamber size

L 50cm * W 60cm* H 80cm

(can be customized)
3 Temperature control PID digit setting, (power about 3300w)
4 Test stand

Two trays, two turntables

(can be customized)
5 Timer 0～9999H/M/S
6 Temperature resolution 0.1℃
7 Temperature fluctuation ±1℃
8 Distribution error ±2.5℃
9 Air circulation Natural ventilation
10 Observation window Square window
11 Material Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint
12 Equipment weight About 120kgs
13 Equipment size 1060mm×700mm×1445mm
14 Power Supply AC 220V, 50Hz or match client's local power supply
