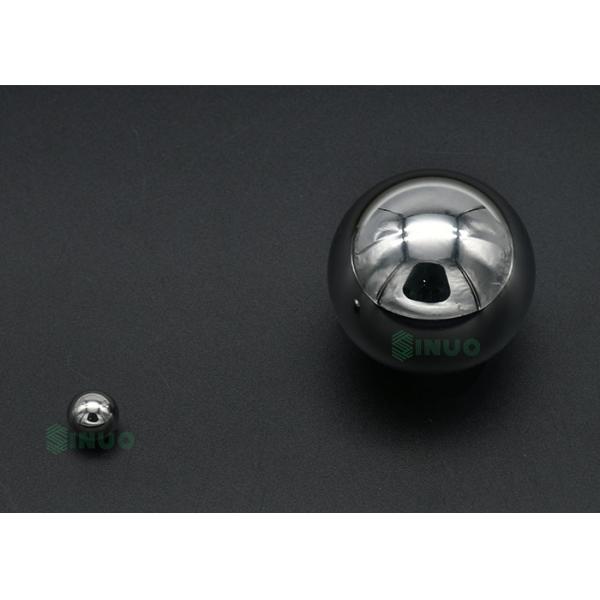

IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-5
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 Sets Per Month
Delivery Time :
3~5 Days
Packaging Details :
Carton Box
Applied Standard :
IEC 61032
Applied Figure :
Figure 5
Model :
SN2210-5
Name :
Test Probe 1
Rigid Sphere Diameter :
Ф50mm
Rigid Sphere Material :
Steel
Description

IEC 61032 Test Probe 1 Figure 5 Ф50mm For Enclosures Against Ingress Test

Product information:

This probe conforms to standard requirements of IEC 61032 test probe 1 figure 5, and required by many standards such as IEC 60529 for IP1 testing, IEC 60335-1, IEC 60065 and etc.

This test probe 1 is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50 mm or greater.

Techincal Parameters:

Parameters /Model SN2210-5
Name Test probe 1
Rigid Sphere Diameter (mm) Ф50+0.05 0
Rigid Sphere Material Steel
Test Procedures and Operation

Please refer to the relevant standards.

Take IEC 60529:2013 clause 13.2 as an example:

The object probe is pushed against any openings of the enclosure with the force specified in table 7.

The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge (use a force gauge to apply required force on the probe directly).

Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
