IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
IEC 60884-1 Switch Life Tester Low Energy Pendulum Impact Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN2122
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied Standard :
IEC 60884 and etc.
Applied Clause :
Clause 24.1
Impact Point :
Adjustable
Fall Height :
0-500mm
Pendulum Tube Length :
1000mm
Pendulum Tube Diameter :
9 mm
Energy/J :
0.2, 0.35, 0.5, 0.7, 1.0
Wall Thickness :
0.5 mm steel pipe
Description

IEC 60884-1 Switch Life Low Energy Pendulum Impact Test Apparatus

Equipment Overview:

The Pendulum Impact Test Apparatus is manufactured in accordance with the requirements of IEC60068-2-75, IEC60884-1 clause 24.1, etc. It is suitable for the mechanical strength test of electrical accessories such as plugs and sockets for household and similar purposes, and surface-mounted installation boxes, screw glands, covers, switches, etc.

The test device mainly consists of a pendulum whose upper end can be kept swinging in a vertical plane around its pendulum axis. The axis of the pendulum shaft is 1000 mm above the measuring point. The pendulum consists of a rigid pendulum shaft and an impact element that meets the requirements. For heavier, bulkier or difficult-to-handle test samples, a portable pendulum can be used for testing. This device is a low-energy pendulum impact device below 2J. It should be fixed vertically on a solid wall. The mounting bracket seat can be adjusted forward and backward, left and right, and the impact angle can be adjusted.

Technical Parameters:

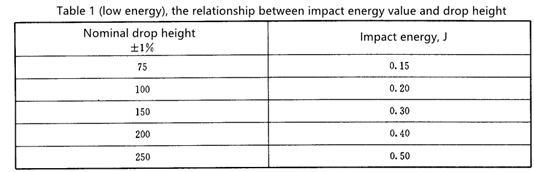

Energy/J 0.2, 0.35, 0.5, 0.7, 1.0

Striking Elements

Equivalent Mass

Equivalent Mass 200g, One piece

Equivalent Mass 250g, One piece
Pendulum Tube Length 1000mm, outer diameter 9 mm, wall thickness 0.5 mm steel pipe
Impact Point Within the adjustable range of sample mounting bracket
Height of Fall 0mm - 500mm, scale display
Striking Element Fix and Release Fixed by mechanical latch, released by spring device
Mounting Brackets Weight:10±1 kg, the structure is firmness, X, Y axis are adjustable, can rotate ±90° around the rotation axis of mounting plate
Equipment Dimensions Approx. 1250mm (L)x190mm (W)x560mm (H)
Equipment Weight Approx. 50KG

Precautions

1 To ensure safety, the pendulum impact test device must be firmly installed on the wall.

2 The pendulum impact test device should not be installed at a higher position, and it is better not exceeding 60cm distance from the ground.

3 During the test, operator can stand on the side of the device as far as possible by holding the control handle, and should not stand directly under the device.

4 When replacing the fixture, please proceed with the assistance of another person.

5 The height indicator of the instrument should be used in conjunction with other length gauge measuring tools to determine the drop height to reduce measurement errors.

6 Regularly add lubricating oil to the adjusting screw and seat to ensure smooth adjustment.

7 The striking element should be properly protected to avoid collision.

8 Required environmental conditions: temperature 5～35℃, humidity 45～75%.
