IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
IEC 60335-2 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel
Specifications
Brand Name :
Sinuo
Model Number :
φ190mm
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 Sets Per Month
Delivery Time :
10 days
Packaging Details :
Carton Box
Applied Standard :
IEC 60335-2-25
Applied Clauses :
Clause 3 and clause 32
Vessel Material :
Borosilicate Glass
Vessel Shape :
Cylindrical
Vessel Diameter :
190mm
Vessel Height :
90mm
Vessel Capacity :
2000ml
Container wall thickness :
Between 2mm-3mm
Description

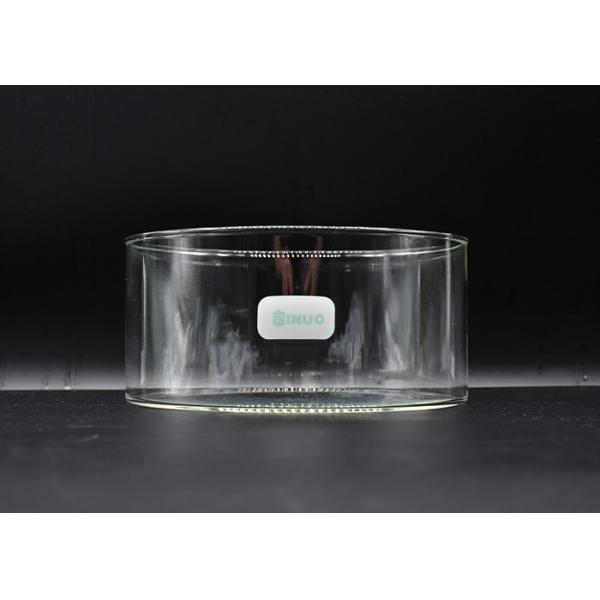

IEC 60335 Microwave Oven Testing φ190mm Cylindrical Borosilicate Glass Vessel

Product Overview:

The Ф190mm Cylindrical Borosilicate Glass Vessels conforms to the standard requirement of IEC 60335-2-25 clause 3 and 32.
The φ190mm vessel is an auxiliary tool to process the normal operation testing of microwave ovens.

Technical Parameters:

Applied standard IEC 60335-2-25 clause 3
Specifications Φ190mm Vessel
Material Borosilicate glass
Shape Cylindrical
Diameter Bottom diameter: 190mm
Height 90mm
Capacity 2000ml
Container wall thickness Between 2mm-3mm

Customized Service:

Sinuo can offer many vessels made by borosilicate glass or other materials as per different IEC standard requirements, also can offer customized vessels as per client's specific testing requirements.

Test Procedures and Operation:

Please refer to the relevant standards.

Take IEC 60335-2-25 clause 3 as an example:

Compliance for the microwave normal operation is checked by the following test. Operation of the appliance with 1000g±50g of potable water at an initial temperature of 20°C±2°C in a cylindrical borosilicate glass vessel having a maximum thickness of 3mm and an outside diameter of approximately 190mm. The vessel is placed on the centre of the shelf.

Notice:

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Wear insulation gloves when moving the vessel from microwave oven to avoid high temperature burns.

3. Handle with care, to avoid broken of the vessel.
