PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
PID Digital Setting Heating Oven Natural Convection Oven
Specifications
Brand Name :
Sinuo
Model Number :
BF8811-216L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
10 days
Packaging Details :
Plywood
Temperature range :
RT ~ 300 ° C
Temperature control :
PID digital setting
Test shelves :
Two trays
Timer :
0~9999H/ M / S
Temperature resolution :
0.1 ° C
Temperature fluctuation :
±1 °C
Distribution error :
±2.5 °C
Air circulation :
Natural convection
Description

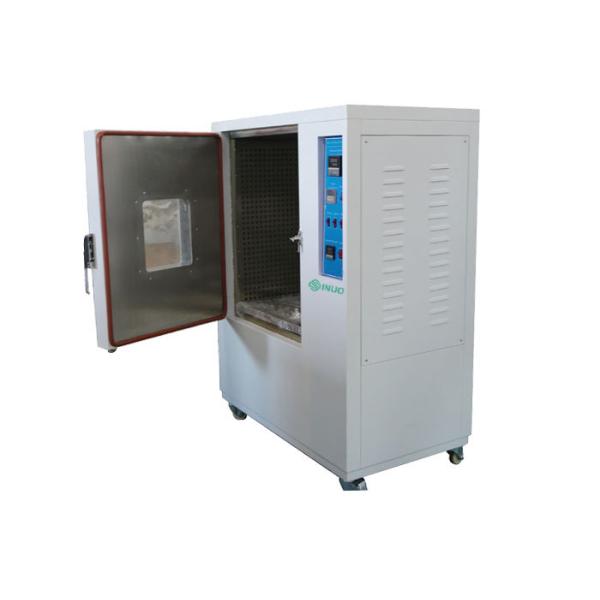

Heating Oven (Natural Convection Oven)

Product overview:

This device is required by IEC 60884-1:2013 clause 16.1, IEC 60669-1;2007 clause 15.1, etc. It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on.

Feature:

1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. P.I.D. control system, double over-temperature protection, safe and reliable.

4. The temperature setting is simple, and the operation is more convenient. Attachment tray, can be adjusted freely.

Parameters:

1. Temperature range: room temperature RT ~ 300 ° C

2. Inner chamber size: L 60cm * W 60cm* H 60cm

3. Temperature control: PID digital setting

4. Test shelves: two trays.

5. Timer: 0~9999H/ M / S

6. Temperature resolution: 0.1 ° C

7. Temperature fluctuation: ±1 °C

8. Distribution error: ±2.5 °C

9. Air circulation: natural convection

10. Natural ventilation: 8~20 times/hour

11.Test piece rotation speed 5~10r.p.m

12. Observation window: square window

13. Material: inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint

14. Machine weight: about 100 kg

15. Power supply: Single-phase AC 230V±10%, 50hz

16. Equipment dimensions: 1160mm×700mm×1245mm
