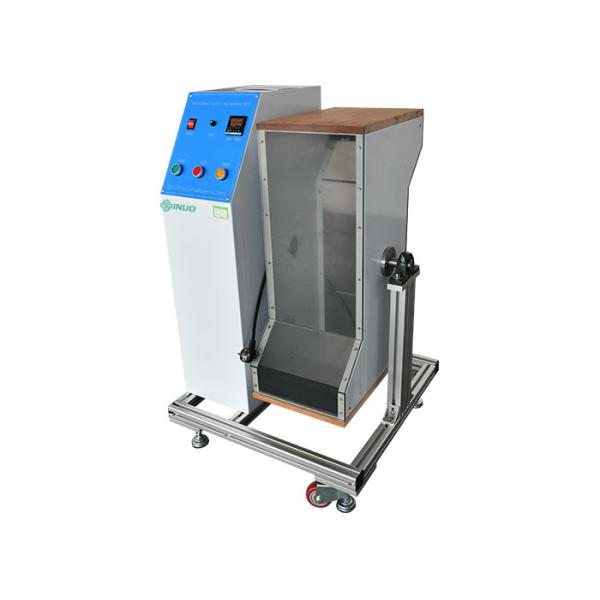

5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
5rpm Tumbling Barrel 500mm Height For Plug And Socket
Specifications
Brand Name :
Sinuo
Model Number :
BF2123
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
10 days
Packaging Details :
Plywood
Rotation speed :
5rpm
Fall rate :
10 times per min
Power supply :
AC230V±10%,50Hz
Test times :
0~9999
Height of Fall :
500mm
Barrel number :
Single
Application :
Plug and socket
Warranty :
Free warranty
Description

Tumbling Barrel

Product information:

Standard: According to IEC 60884-1:2013 Clause 24.2 and procedure 2 of IEC 60068-2-31. Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories. Feature: This tester can preset test times, automatic stop when set test times completed.

Technical Parameters:

Rotation speed 5rpm
Fall rate 10 times per min
Material Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
Test times 0~9999
Height of Fall 500mm
Barrel number Single
Application Plug and socket and similar electrical accessories
Power supply Single-phase 230V±10%,50Hz

5rpm Tumbling Barrel 500mm Height For Plug And Socket
