Specifications
Brand Name :
Sinuo
Model Number :
SN1402
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Power Supply :
AC220V±10%/50-60Hz
Atmospheric Pressure :
80～106kpa
Working Temperature :
5～40°C
Humidity :
30%-90%RH
Test Station :
Single
Impact Energy :
20J
Test Time :
3 times
Impact Weight :
20kg
Description

Household Appliance Rubber Hemisphere Drop Test Device For Spin Extractor IEC60335-2

Standards For Rubber Hemisphere Drop Test Device:

IEC 60335-2-7:2008 + A1:2011 part 2-7: particular requirements for washing machines, clause 21.101.1;

IEC 60335-2-4 household and similar electrical appliances – safety: part 2-4: particular requirements for spin extractors, clause 21.101.

Product Overview For Rubber Hemisphere Drop Test Device:

The device is used to verify the impact strength properties of the cover of electrical appliances loaded from the top.

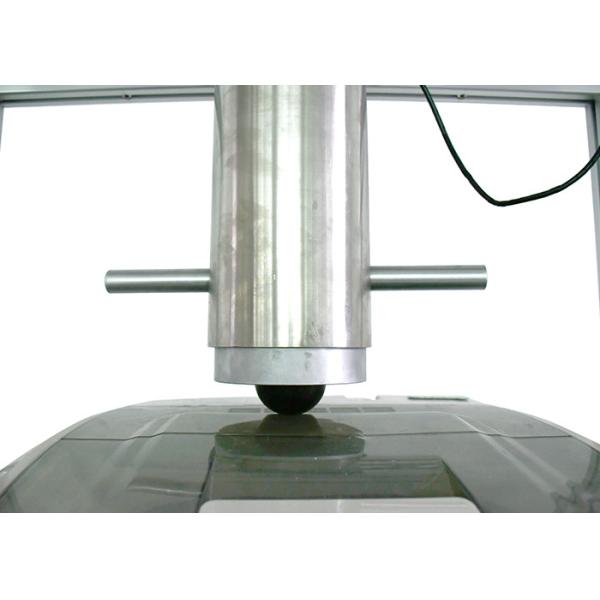

This device uses electromagnetic iron to adsorbs a 20 kg hammer, the hammer head is made of rubber with a diameter of 70 mm hardness of 40-50 IRHD, release from the height of 100 mm from the center of the cover, the impact hammer falls freely with 20 J of energy to impact the cover. After three tests, check whether the cover is damaged to the extent that the running parts can be touched.

Technical Parameters For Rubber Hemisphere Drop Test Device:

Test station Single
Electrical Control Method Button control
Impact element release mode Electromagnetic release
Rubber hemispheres Diameter 70 mm, hardness 40~50 IRHD
Impact element weight 20kg
Drop Height 100mm, Equipment self-positioning, liftable
Equivalent Impact Energy 20J
Test Time 3times

Use Environment For Rubber Hemisphere Drop Test Device:

Power supply:AC220V±10%/50-60Hz, atmospheric pressure 80～106kpa ,working temperature 5～40°C, humidity 30%-90%,(20～)%RH. No violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation

Structure For Rubber Hemisphere Drop Test Device:

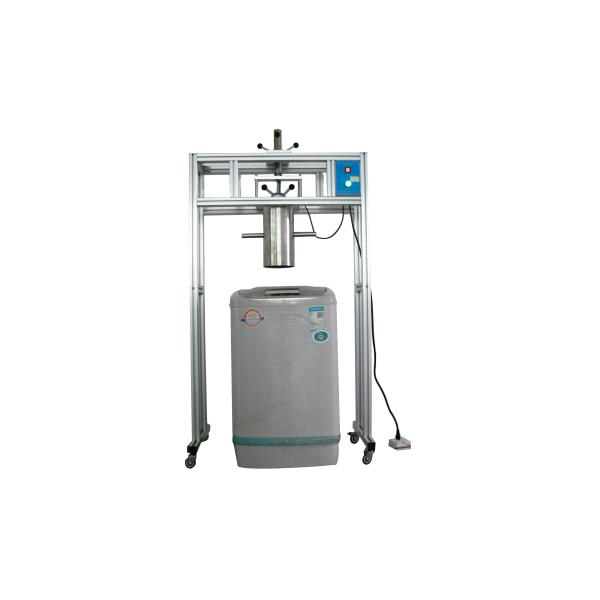

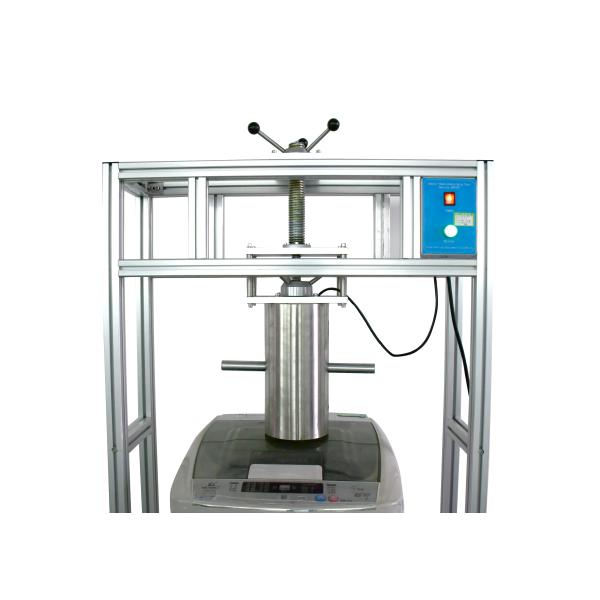

This equipment adopts movable car structure, does not need to move the sample, the equipment impact hammer head can be positioned above the cover.

Equipment Dimensions:about:880×460×1630(mm)W×D×H

Equipment weight:80kg
