IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN2164
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Plywood Case
Standard :
IEC62262
Control :
PLC control
Equivalent mass of impact hammer :
Steel ball 2kg, 5kg
Impact height :
0,200,400m, 1000mm, can be preset
Impact point :
Can be preset
Impact times :
0-9999 times, can be preset
Description

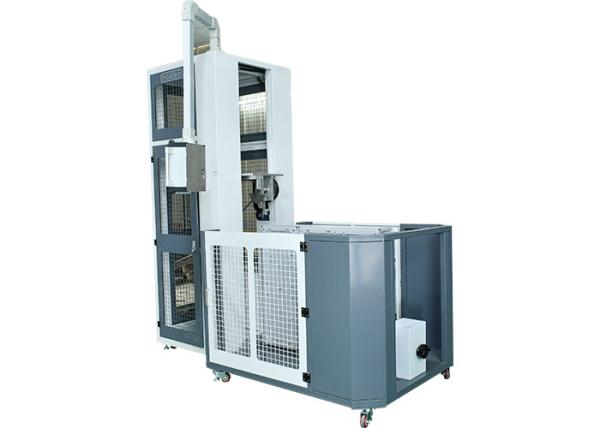

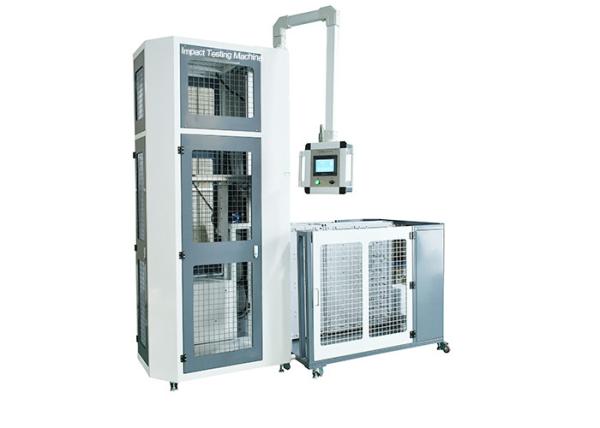

IEC62262 IK Rating Test Against Mechanic Impact Testing Equipment

Brief Introduction:

The IK Rating Test Against Mechanic Impact Testing Equipment conforms to the requirements of IEC 62262-2002; IEC 60439-5: 2006; IEC 60439-5:2006 clause 8.2.101.2; IEC 60439-5:2008, clause 8.2.101.5 and etc.

It is used to test the impact resistance of household and similar electrical products and their accessories, such as plugs and sockets and surface mounting boxes, screw glands, covers, switches, lamps, and etc. It also used to assess the safety performance and strength class of the products.

The equipment adopts PLC control, touch screen control, the height of the striking point can be adjusted by electric lift, the striking element is absorbed and released by the electromagnet, and the automatic electric brake prevents secondary impact.

Techanical Parameters:

Standard IEC 62262-2002
Equivalent mass of impact hammer 2kg, 5kg
Pendulum height adjustment range 0-1300mm
Swing arm height adjustment range 200-500mm
Impact height 0,200,400m, 1000mm, can be preset
Equivalent mass of impact hammer Steel ball 2kg
Impact point Can be preset
Impact times 0-9999 times, can be preset
Status indication LED indication light
Relative height positioning Pendulum stop rod positioning
Pendulum positioning Electromagnet adsorption
Pendulum release Remote control
Height adjustment method Remote control
Safety protection 360°all-round safety protection, automatic electric brake, prevent secondary impact
