IEC 62196-1 Insertability Test Gauges for Round Unprepared Conductors

Product Overview:

The gauges conform to IEC 62196-1:2014 clause 13.2.1 figure 6 table 7, IEC 62196-1:2020 clause 13.2.1 figure 11 table 2.

They are used to verify the screw type terminals shall allow the proper connection of copper or copper-alloy conductors having nominal cross-sectional areas as shown in Table 2 of IEC 62196-1:2020.

Technical parameters:

Total 16 pcs.

Made of steel, with nylon handle.

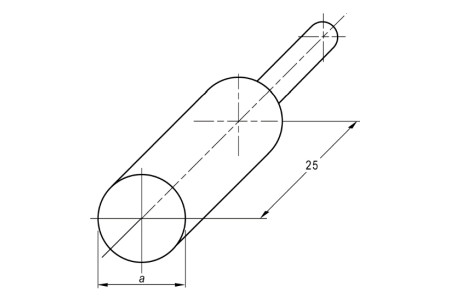

The dimensions and shapes are made according to following standard figure and table:

Flexible

mm2

Rigid

(solid or stranded)

mm2

Diameter a

mm

Tolerances for a

mm
1.5 1.5 2.4

0

-0.05
2.5 4 2.8

0

-0.05
4 6 3.6

0

-0.06
6 10 4.3

0

-0.06
10 - 5.3

0

-0.06
16 25 6.9

0

-0.07
50 70 12.0

0

-0.08
70 - 14.0

0

-0.08
- 150 18.0

0

-0.08
150 185 20.0

0

-0.08
185 240 25

0

-0.08
240 300 28

0

-0.08
300 400 28.5

0

-0.08
400 500 33

0

-0.08
500 630 37

0

-0.08
630 800 41

0

-0.08

Maximum cross-section of conductors and corresponding gauges.

Material: steel
