IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
IEC 60598-1 Led Testing Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
Specifications
Brand Name :
Sinuo
Model Number :
SN994
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood
Applied standard :
IEC60598-1
Applied clause :
clause 4.12.5
Torque Applied Time :
1 min
Torque Applied Method :
Manual
Torque Range :
1.5-30N.m
Rod Material :
Stainless steel
Way of applying torque :
Torque wrench
Gland fixing method :
Vise or adjustable wrench
Description

IEC 60598-1 Led Test Equipment Screwed Glands Torque Screwdriver 1.5-30N.M

Standards & Clauses:

IEC 60598-1 “Luminaries-Part1: General requirements and tests” clause 4.12.5

Product overview:

The screwed glands tester match the requirements of IEC60598-1:2014 4.12.5, for assessing the reliability of fixation of objects secured with metal and plastic threaded glands, by applying a certain torque to the gland according to the standard, and neither the gland nor its connecting parts can be damaged.

Samples and Restrictions:

Glands of screw thread ≦ M33

Application:

Test the mechanical strength of the screwed glands

Test Principle:

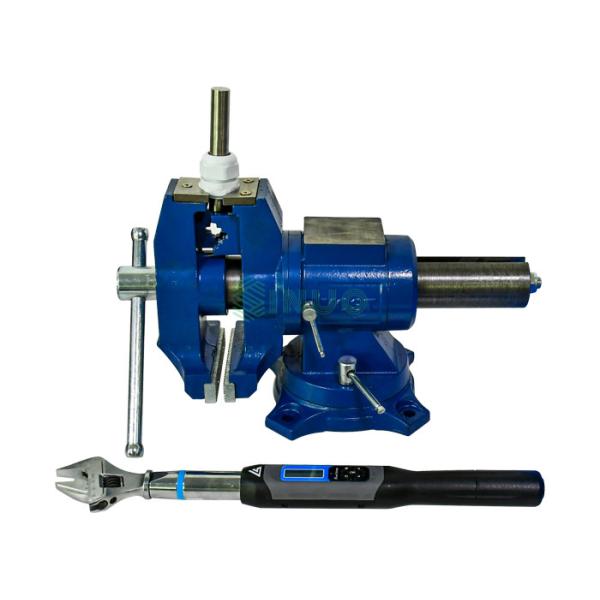

Screwed gland is fitted with a cylindrical metal rod, one end is fixed, then test torque is applied on the other end by the spanner.

Structure:

Manual testing, simple and convenient

Technical Parameters:

Applied torque range 1.5-30N.m
Way of applying torque Torque wrench
Gland fixing method Vise or adjustable wrench
Cylindrical metal rod One of each Ф5mm, Ф7mm, Ф9 mm, Ф10mm, Ф12 mm, Ф14mm, Ф16 mm, Ф18 mm, Ф20 mm, Ф22 mm, Ф25 mm, Ф30 mm, Ф32 mm, Ф40mm
