Specifications
Brand Name :
Sinuo
Model Number :
SN1204
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Boxed
Applied standard :
IEC 62368-1
Applied clause :
Annex U
Support level :
750mm±50mm
Test baffle :
Diameter of 20mm
Range of steel ball :
Ø40mm，500g
Steel wire rope :
ø0.6-0.8
Description

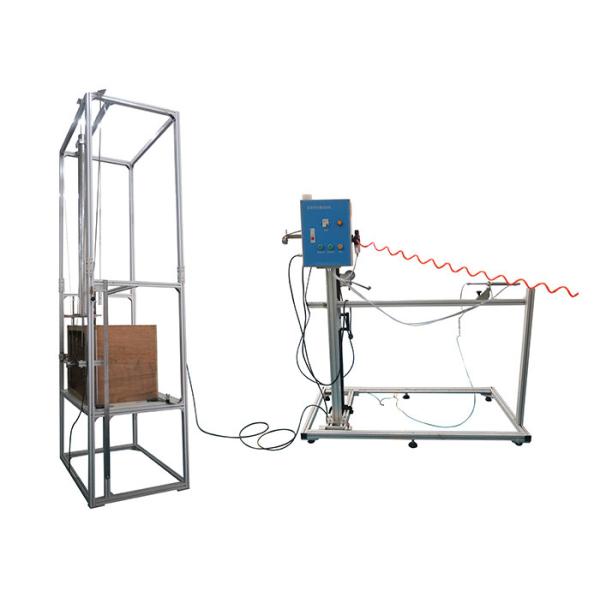

IEC 62368-1 Annex U Cathode Ray Tubes Mechanical Strength And Explosion Proof Test Apparatus

Product information:

Standard:Confirm to IEC 62368-1:2018 Annex U, IEC 60950-1:2013 clause 4.2.8, IEC60065:2014 clause 18.2, IEC61965, etc.

Application:For screen size more than 16cm of the cathode ray tubes anti explosion impact and mechanical impact verification, or explosion of the cathode ray tubes protecting verification to the equipment enclosure.

Test sample:For screen size more than 16cm of the cathode ray tubes and other test equipment.

Feature:The cathode ray tube is installed on the test chamber, the test chamber should be placed in a support level with height above the surface of 75cm±5cm, there should be no fragment more than 2g after testing each cathode ray tube, it is placed on the ground from the tube surface projection with 500mm, high 250mm of the baffle, and there should be no any fragment flying on the same baffle at 2000mm.

Technical parameters:

Applied standard IEC 62368-1
Applied clause Annex U
Material Use aluminum alloy material, with beautiful appearance
Accessory Equip with diamond scratch pin
Support level 750mm±50mm
Test baffle W500mm*H250mm
Scratch area Diameter of 20mm
Range of steel ball Ø40mm,500g
Steel wire rope ø0.6-0.8
Test contents Mechanical strength test (small ball impact test), explosion test (emission shock), high energy impact test
