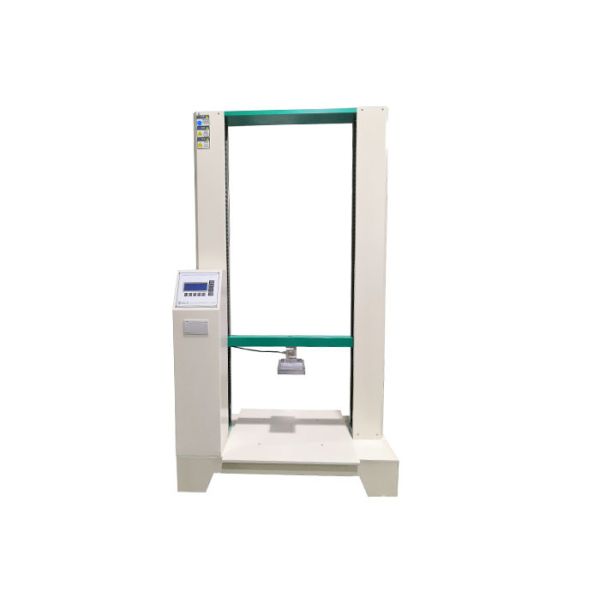

IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN2215
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets Per Month
Delivery Time :
20 Days
Packaging Details :
Standard Exporting Plywood Case
Applied standard :
IEC 62368-1
Applied clause :
4.8 and 8.6.2
Capacity :
0~1T
Accuracy level :
Level 1
Display method :
Electronic LCD display
Power unit :
kgf, gf, N, kN, lbf
Stress unit :
Pa, kPa, MPa, kgf/cm2, lbf/in2
Lifting stroke :
1200 mm
Description

IEC 62368-1 Clause 4.8, 8.6.2 Intelligent Crush Testing Machine

Product Information:

This machine is the most direct test instrument for verifying the compressive strength of cartons or other packaging containers. It is used to determine the compressive strength of cartons, and can be used for steady pressure tests and crush tests. The results of the tests can be used as an important reference for the height of the finished product containers at the factory. The important basis for designing the packaging box. It can also be used to process testing as per IEC 62368-1:2018 clause 4.8 and 8.6.2, IEC 60950-1:2013 clause 4.1, clause 4.2.10 and IEC60065:2014 clause 12.7.3.6, etc.

The machine uses a motor drive screw to move the upper platen downwards, thereby compressing the sample; as a result, the force sensor is used in conjunction with the display to automatically display the strength value.

Main Technical Parameters:

Applied standard IEC 62368-1
Applied clause 4.8 and 8.6.2
Capacity 0~1T
Accuracy level Level 1
Control method Controlled by microcomputer
Display method Electronic LCD display
Power unit kgf, gf, N, kN, lbf
Stress unit Pa, kPa, MPa, kgf/cm2, lbf/in2
Displacement unit mm, cm, in
Power resolution 1/100000
Display resolution 0.02N
Lifting stroke 1200 mm
Press plate size 125mm * 200mm as per IEC 62368-1:2018 clause 8.6.2
Bottom platen size 600mm * 600mm * 60mm
Software function English display
Shutdown mode Overload shutdown, emergency stop button, automatic shutdown of test piece destruction, automatic shutdown of upper and lower limit settings
Safety equipment Overload protection, limit element protection device
Machine power AC variable frequency motor drive controller
Lifting rail High precision ball screw
Power supply AC220V/50Hz
Machine weight Around 350KG
Performance characteristics The percentage break value can be set, the machine will stop automatically, and the speeds can be preset when enter the menu. 40 results are available, the average of all test results and single results can be viewed.
