IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-28
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 PCS Per Month
Delivery Time :
3~5 Days
Packaging Details :
Carton Box
Applied standard :
IEC 62368-1
Applied clause :
Annex T10
Tip angle :
Maximum: 5 mins
Mass :
60 ° ± 2 °
Tip shape :
Conical
Material :
Tungsten carbide
Description

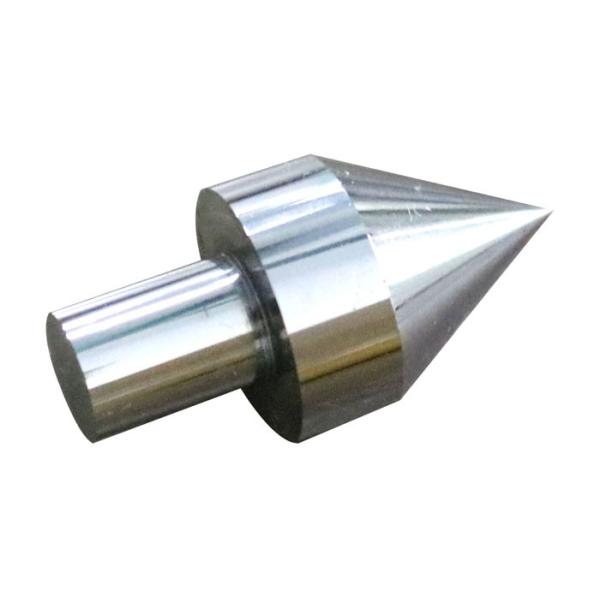

IEC 62368-1 Annex T10 Centre Punch for Glass Fragmantation Test

Product Information:

The Centre Punch conforms to the standard requirements of IEC 62368-1:2018 Annex T10, IEC 60598-2-3 clause3.6.5, IEC 60335-2-6:22.120, IEC 60335-2-25:22.119; IEC 60335-2-89:22.104 and etc.

It is used to test accessible glass panels of household appliances, electrical accessories, lamps, etc.

The test sample is supported over its whole area and precautions shall be taken to ensure that particles will not be scattered upon fragmentation.

Technical Parameters:

Applied standard IEC 62368-1
Applied clause Annex T10
Mass 75g ± 5g
Tip angle 60 ° ± 2 °
Tip shape Conical
Material Tungsten carbide

Test Process:
The sample under test is broken by means of a test punch having a head with a mass of 75 g ±5 g and a conical tungsten carbide tip with an angle of 60°±2°. The punch shall be positioned approximately 13 mm in from the longest edge of the glass at the midpoint of that edge. The punch is them hit by a hammer so that the glass breaks.
