Specifications
Brand Name :
Sinuo
Model Number :
SN2302
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Plywood Case
Applied Standard :
IEC 62368-1
Applied Clause :
Annex G.7
Power Supply :
3 phase 5 wires 380V/50Hz
Load Current :
0.5~25A, adjustable
Testing speed :
0.33m/s
Testing distance :
1000±20mm
Description

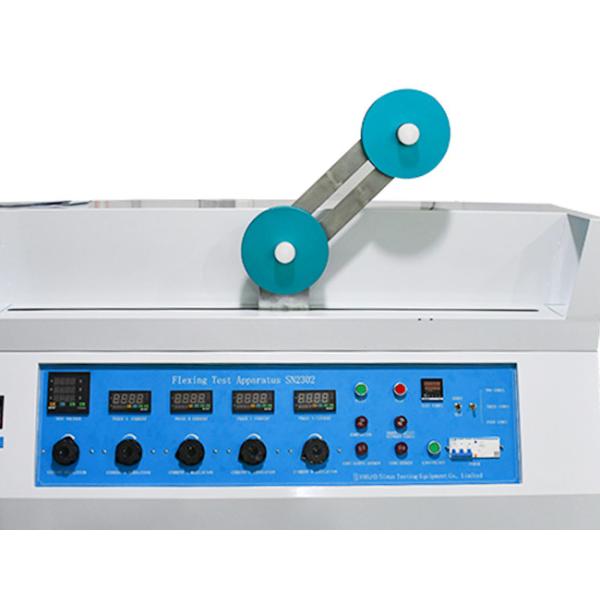

IEC 62368-1 Clause Annex G.7 Rubber Cables Flexing Test Apparatus

Product Infromation:

The Rubber Cables Flexing Test Apparatus is designed and manufactured according to standard IEC 62368-1:2018 clause Annex G.7, IEC60065:2014 clause 16.3 b), IEC60227-2 clause 3.1 Figure 1 and etc. It complies with the relevant standard requirements of rubber plastic wires and cables mechanical strength flexing test. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.

The test apparatus can meet the standard test requirements of the domestic and international standards, can be widely used. It has precision digital meter, thus, can accurately measure the smaller or larger current voltage. The change method for pulleys is simple and convenient. The test equipment adopts to chain drive mechanism, the performance is stable and the noise is rare.

Technical Characteristics:

Applied Standard IEC 62368-1
Applied Clause Annex G.7
Power Supply 3 phase 5 wires 380V/50Hz
Load Current 0.5~25A, adjustable
Load Voltage Line-to-line voltage 10~400V adjustable
Testing speed 0.33m/s
Testing distance 1000±20mm
Suitable cores 2-18
Nominal cross-sectional area 0.2~4mm2
Diameter of pulleys 60, 80, 120, 160, 200mm
Test weights 2*0.5kg with hook, 2*0.5kg with hole, 6*1kg with hole, 2*6kg with hook
