IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN996
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Plywood Case
Applied standard :
IEC 60598-1
Clause :
Clause 4.14.3.
Bending angle :
0-360°, can be preset
Bending rate :
0～10rpm, can be preset
Electrical control :
PLC programmable control
Drive method :
Servo motor
Test Cycles :
1~999999 can be preset
Rotation Center Height :
1200mm
Description

IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment

Product Information:

This lighting adjustment test equipment matches the requirements of clause 4.14.3 of IEC 60598-1, mainly used for the lamp adjustment device’s torsion, and bending test of the table lamps, floor lamps and the lamps which are for professional use (such as a plotter lamps).

Equipment Structure

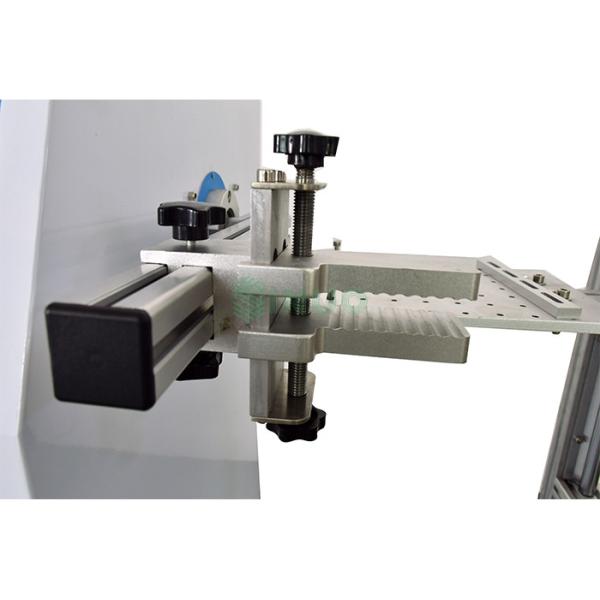

The test equipment is coming with integrated PLC & touch screen, motor drive bending mechanism, sample installation platform. The bending angles, test speed and test cycle can be set on touch screen. Once the test is completed or failed, the test equipment will give out signal.

Technical Parameters:

Power Supply AC220V, 50HZ
Bending /Rotation Angle 0~360° (or 0~±180°) can be preset on touch screen
Test Speed 0 to 60 times / min, can be preset
Test Cycles 1~999999 can be preset
Electrical Control PLC & 7” touch screen
Drive Mode Stepper motor
Operation Mode Intelligent touch screen control (7 inches)
Rotation Center Height 1200mm
Platform Liftable Stroke 0-1000mm, manually adjustable by rotating the hand wheel
Maximum Radius of Gyration of the Rotating Fixture R500mm
Test Station One station
