Specifications
Brand Name :
Sinuo
Model Number :
SN1112
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Standard Exporting Plywood Case
Applied Standard :
IEC60884-1
Applied Clause :
23.4
Working Station :
Single
Electrical Control :
PLC and 7-inch touch screen
Test Weight :
5N(0.5kg), 10N, 20N, or customized
Drive Method :
Servo motor drive
Description

IEC6 Power Cords Bending Resistance Flexible Cable Test Equipment

Product Information:

The test equipment is designed and manufactured according to the standard requirements of IEC60884-1: clause 23.4, IEC60335-1: clause 25.14, IEC60745-1: clause 24.12, IEC60227-2: clause 3.2 and etc.

It is used to detect the bending resistance of the household appliance power cord in entrance section and verify its reliability.

It adopts the motor to drive the turntable to rotate, applies a load to the cord and pass the rated voltage, so that the sample can be bent at a certain speed and angle, until the preset test times are finished or the soft line breaks without current signal.

Samples and Restrictions:

Non-rewirable power plugs (or terminals) and non-rewirable mobile sockets; household appliances (such as electric irons) with power cords that need to be moved during work; hand-held power tools; copper wires.

Structure:

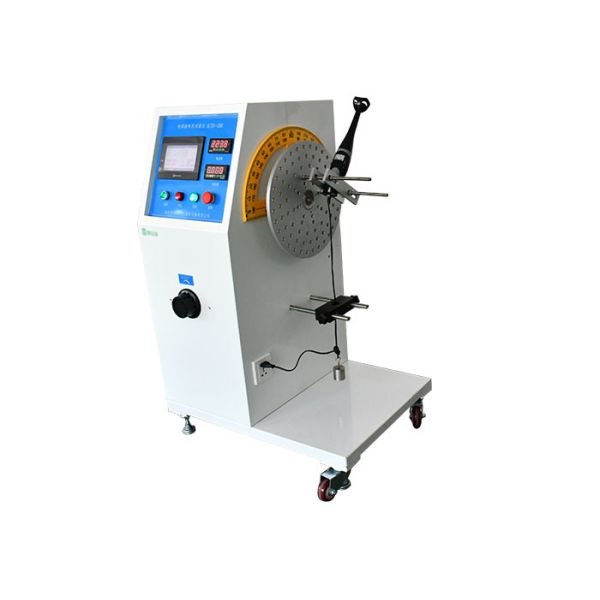

The equipment is driven by a servo motor, and with a large-size aluminum plate for mounting samples. When the sample is clamped, the swing axis and the point where the flexible cord enters the appliance can be matched, so as to achieve the minimum lateral displacement of the cord with the load.

Technical Parameters:

Applied Standard IEC60884-1
Applied Clause 23.4
Working Station Single
Electrical Control PLC and 7-inch touch screen
Drive Method Servo motor drive
Sample Clamping Method Mechanical clamping, the position of clamping point is adjustable
Flexing Angle 0-360° adjustable arbitrarily (can be preset ±30°, ±45°, ±60°, ±90°)
Flexing Speed 0-60 cycles/min, frequency conversion speed regulation
Flexing Cycle 0~999999 can be preset, default 25 cycles
Test Weight 5N(0.5kg), 10N, 20N, or customized
Loading Voltage Loading voltage can be 0-250Vadjustable, the current is displayed; the model which voltage and current both can be adjustable can be customized; the model which loading current can be 0.1A as per GB/T5023.2 can be customized
Test Judgment Judged by the signal given by whether the current is conducting or not

Software Interface

(For reference)
Dimensions: Approx. 800 × 800 × 1300 (mm) (W × H × D)
Equipment weight 130kg
Power supply AC220V±10%/50-60Hz,0.3KW or match the customer's local power supply.
