IEC 60598-1 IPX1/2/3/4/5/6/7/8 Waterproof Comprehensive Test System Water Ingress Testing

Product Overview:

Standard: according to IEC60598-1:2014, IEC60529:2013.

Samples and restrictions:

Electrical and electronic products, automobile and motorcycle parts, communication products, household appliances, outdoor lighting and signaling devices and other products.

Application: Test whether electronic and electrical products, automobile and motorcycle parts, household appliances, seals and lamps can ensure good performance of equipment and components in the environment of dripping, spraying, spraying, short-term immersion or long-term deep water immersion. The purpose is to verify Product shell protection performance when dripping, spraying, spraying or short-term immersion in water at IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 levels.

Test principle: By controlling the flow of water supply to ensure that dripping, spraying or spraying water reaches the standard required speed, and by controlling the depth and immersion time of the sample in the water to reach the standard equivalent pressure, the test equipment can produce uniform pressure on the entire surface of the sample shell. water flow or water pressure.

Structure and features:

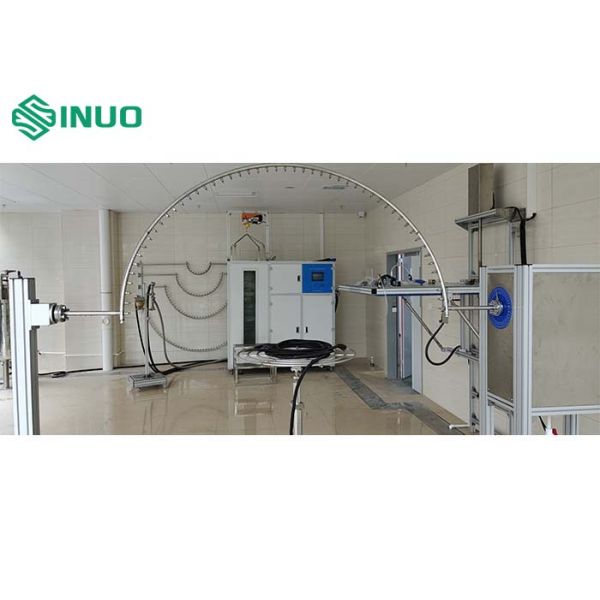

This device consists of a dripping mechanism, a swing pipe rain mechanism, a water spray mechanism, a water immersion tank, a pressure water-tight container, a turntable and an electrical control cabinet. The drip tank bracket is wall-mounted and is controlled by a motor to automatically rise and fall, with an anti-fall function; one end of the swing tube mechanism is hung on the wall, and the other end is fixed on the floor support frame, and is driven by the motor to swing left and right; the water spray mechanism is installed on the bracket; immersed in water The box and electrical control cabinet are made into a whole, and the hanging basket carrying the sample is lifted and lowered by an electric hoist; the pressure water-tight container is placed separately and connected to the control cabinet and water tank; the load turntable is adjustable in speed and is used for IPX1-6 testing , the turntable can be tilted 15°, and is equipped with a water filtration and cleaning device to prevent pinhole clogging. This system has an open structure.

Usage environment:

Power supply: AC380V±5%/50Hz, 15KW

Use place: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86~106kpa (860mbar-1060mbar), the ground must be flat, with lighting, with waterproof leakage switch (or socket), water inlet and drainage functions good

Water source: clean water or tap water without impurities, equipped with water cleaning and filtering device

Structure:

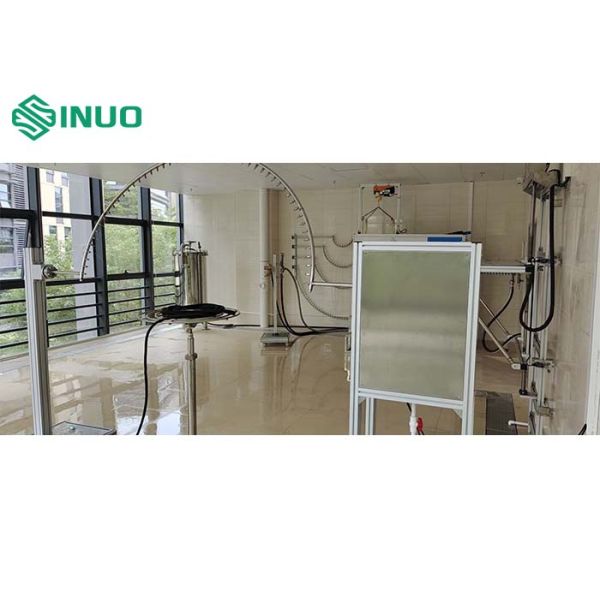

The test equipment consists of a drip mechanism, an oscillating mechanism, a water jet mechanism, an immersion tank, an IPX8 pressure watertight container, an electrical control cabinet and a turntable. The bracket of drip box is wall-hanging and with anti-drop function, which can lift automatically controlled by motor. One end of the oscillating mechanism is mounted on the wall, and the other end of the oscillating mechanism is fixed on the floor support, the tube is caused to oscillate by motor driving. The nozzle is fixed on the floor stand support. The water tank and electrical control part are integrated, the sample basket lifting is driven by electric hoist. The rotation speed of turntable is adjustable, used for IPX1 ~IPX6 test, and can be tilted 15°, used for IPX2 test. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open type structure.

Technical parameters:
