UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 30～1500mm
Specifications
Brand Name :
Sinuo
Model Number :
SN5510
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Control Method :
PLC control
Drive Mode :
Stepper motor
Test station :
1 station
Power supply :
AC220/50Hz
Drop height :
30～1500mm
Lifting speed :
0～3mm/s
Brand :
Sinuo
Warranty :
1 year
Description

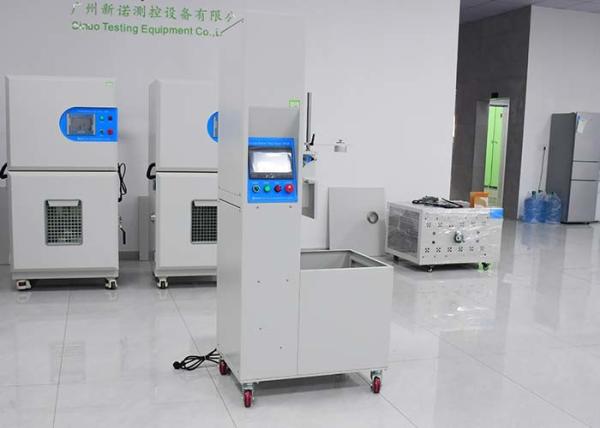

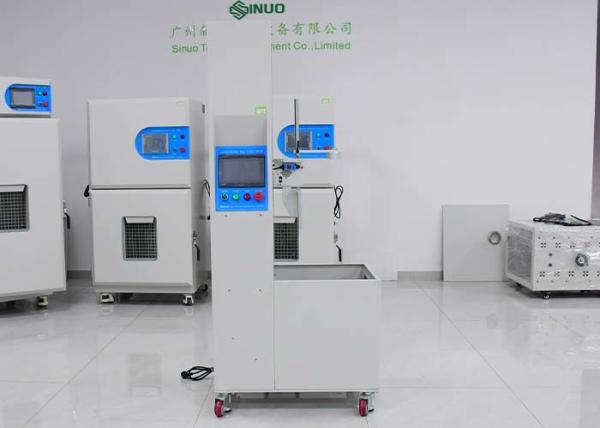

UL 1642 Lithium Battery Drop Tester For Battery Drop Strength Test Drop height 30～1500mm


Product Information:

This test equipment is used to test the drop strength and safety requirements of batteries.


Technical Parameters:

Item Parameters
Power supply AC220V±10%/50Hz
Test station Single station
Operation interface 7-inch color LCD touch screen
Drive mode Stepper motor
Control system PLC Control
Drop height 30～1500mm, can be preset
Lifting speed 0～3mm/s, can be preset
Test environment Ambient temperature 5～40°C; relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

Feature:

1.This machine available for package face, corner, edge free drop testing.

2.With height digital display instrument and tracing height with encoder, so can measure the precision drop height.

3.The drop height tolerance within2% or 10mm;

4.Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping. The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.
