Specifications
Brand Name :
Sinuo
Model Number :
SN1118
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
5 Days
Packaging Details :
Carton
Tube Diameter :
8 mm
Tube Length :
30 mm
Solution Volume :
30 ml
Solution Type :
Water
Tube Distance :
200 mm
Apparatus Material :
Plastic
Description

IEC 60320-1 Clause 14.2 Figure B.1 Steam Sterilizer Moisture Resistance Test Apparatus

Product information:

The spillage test apparatus is designed and manufactured according to IEC 60335-2-15 clause 15.2 figure 101, and IEC60320-1 clause 14.2 figure B.1.

It is intended for checking the weight of the protective measures against liquid overflow to ensure that the structure of the plug-in connector (cordless electric kettle) is not affected by liquid when it is installed in an alternative voltage base following the manufacturer’s installation instructions.

Technical parameters:

Tube Diameter 8 mm
Tube Length 30 mm
Test Solution Volume 30 ml
Test Solution Type

30ml water containing 1% of NaCl

(The solution should be prepared by user)
Distance from the lower end of tube to the appliance 200 mm, adjustable
Apparatus Material Plastic
How to process the moisture resistance of steam sterilizers?

1. Sample clamping

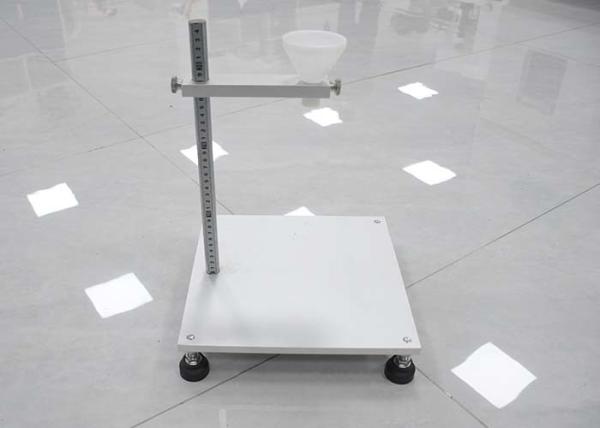

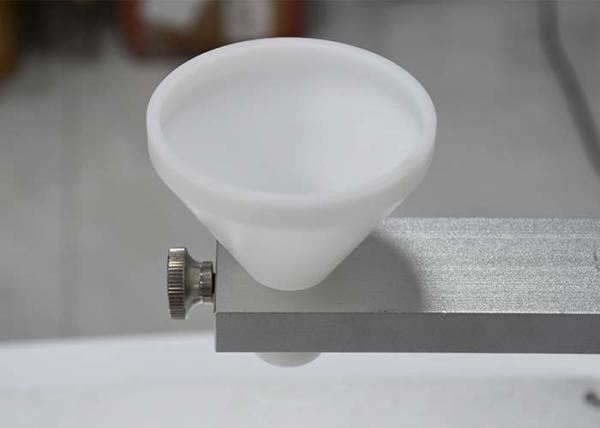

According to the standard diagram below, place the sample directly under the funnel, and adjust the height of the funnel tray so that the bottom of the funnel is 200mm away from the sample surface.

IEC 60320-1 Clause 14.2 Figure B.1 Steam Sterilizer Moisture Resistance Test Apparatus

2. Test liquid preparation

Prepare 30mL of a solution containing 1% sodium chloride and fill it with a test tube.

3. Connect the electrical strength equipment

Connect the base to the withstand voltage instrument according to the standard.

4. Test operation

Pour the solution in the test tube into the funnel manually within 2s and let it drip onto the sample. Then use the withstand voltage instrument to apply a test voltage of 2500V for the electrical strength test. Determine whether it is qualified according to the standard.

IEC 60320-1 Clause 14.2 Figure B.1 Steam Sterilizer Moisture Resistance Test Apparatus

IEC 60320-1 Clause 14.2 Figure B.1 Steam Sterilizer Moisture Resistance Test Apparatus

IEC 60320-1 Clause 14.2 Figure B.1 Steam Sterilizer Moisture Resistance Test Apparatus
