Specifications
Brand Name :
Sinuo
Model Number :
SN2121-L
Certification :
Calibration Certificate(cost additional )
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets / Month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Test Stations :
6 (can be customized)
Input voltage :
AC220V±10%, 60Hz
Flexing Times :
1-999999
Flexing Rate :
10~60 rpm
Flexing Angles :
45°, 60°, 90°
Connecting Wire :
7-pin aviation wire
Output current :
0 ~ 40A
Output voltage :
0 ~ 280V
Description

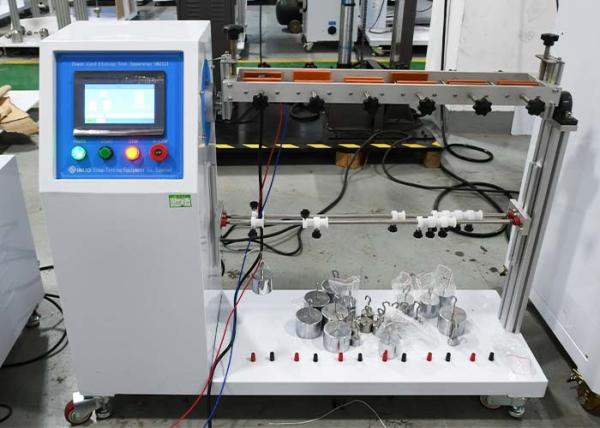

IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet


Product information for Power Cord Flexing Test Apparatus:

The power cord flexing test apparatus meets the requirements of IEC 60884-1:2022 clause 23.4 figure 28, which is used to process the flexing test for the flexible cable of non-rewirable plugs and non-rewirable portable socket-outlets.

The test times (up to 999999) can be preset on this test apparatus, and the test can be carried on and the numbers of tests can be calculated automatically. When the test times reach to the preset value, the system will shut down automatically and give out completion signals. Once the test apparatus connects to external load cabinet, it can be used to process test with load.


Technical parameters for Power Cord Flexing Test Apparatus:

Power Supply AC220V, 60Hz
Test Stations 6, with 6 sets of clamps
Flexing Times 1-999999 (can be preset). With 6 independent counters corresponding to each station, and there is a general counter
Flexing Rate 10~60 rpm (can be adjustable)
Flexing Angles Swivel angle on either side for 45°, 60°, 90°
Sample Connecting Wires 6 PCS
Weights 10N/20N*6(the weight as per UL requirements is 113g and 284g)
Breaking indication Indicator display
Dimensions L*W*H=870mm *610mm* 820mm
Conforms to standard IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620


Mechanical theory

 The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.
Product information for 40A Load Cabinet:


This load cabinet meets the requirements of IEC60884-1 clause 23.4, UL and etc. It is used to supply test current for power lines, cables and electrical materials which required test current under 40A. The device has six output current loop, the voltage is adjustable between loops. The test machine uses imported instruments, has rational layout and beautiful appearance, the operation of the device is convenient.
Note: this test equipment is suggested to work together with flexible cable flexing test apparatus, showing as following:

IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet

Flexing Test Apparatus & Load Cabinet


Technical parameters for 40A Load Cabinet:

Input voltage AC220V±5%, 50Hz or match client's local power supply
Output current 0 ~ 40A is arbitrary adjustable
Output voltage 0 ~ 280V
Test station Six stations
Ammeter Accuracy ±1％
Connecting wire 7-pin aviation wire
Environment temperature -10℃~50℃
IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet
IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet
IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet
