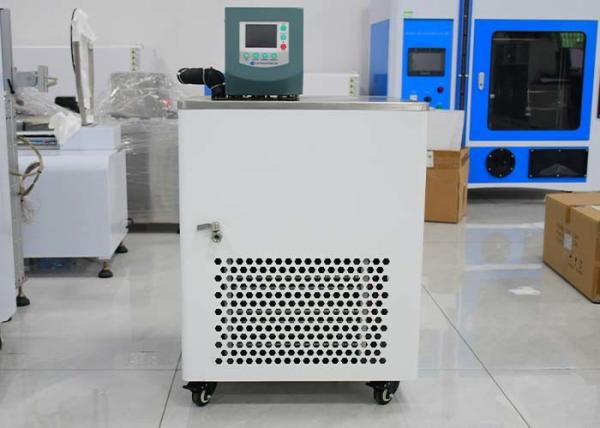

High And Low Temperature Bath Water Tank with both cooling and heating functions

Product information:

The low-high temperature bath is a high-precision thermostatic source with both cooling and heating functions, also serving as a compact chiller. It is widely used in fields such as petroleum, chemical, metallurgy, pharmaceuticals, biochemistry, material science, testing, chemical analysis, research institutions, universities, factory laboratories, and quality inspection and metrology departments.

Depending on the bath's opening size, constant temperature experiments can be conducted directly within the bath, or it can be connected to other equipment through hoses to function with the thermostatic source. The internal circulation enhances temperature uniformity within the bath, reducing fluctuations.

External Circulation:

Utilizing the pump's circulation ability, insulated hoses connect the outlet to external equipment, creating a closed-loop that flows back to the inlet, extending the thermostatic medium to establish an external constant temperature field.

Product Features

Fully enclosed compressor unit for cooling, with multiple protection devices for overheating and overcurrent.

The circulation pump allows the thermostatic liquid within the bath to be externally circulated, creating a secondary constant temperature field.

The cold liquid in the bath can be circulated externally to cool external experimental containers, or low-temperature and constant temperature experiments can be performed directly in the bath.

Equipped with an XMT analog digital PID automatic control system, with digital temperature display. When the temperature decreases to 42°C, natural cooling is activated, and below 42°C, the compressor can directly start cooling.

The inner tank and tabletop are made of stainless steel, ensuring cleanliness, aesthetic appeal, and corrosion resistance.

The THD series is a vertical model, convenient for placement within a workstation, with a heating power of 1500W.

Equipped with a ball valve for drainage.

Approximate dimensions: 500 x 400 x 830 mm (including foot and control cabinet height).

Usable opening size: 180 x 140 x 200 mm.

Pump power: 40W, pump flow rate: 8 L/min, pump lift: 3 meters.
