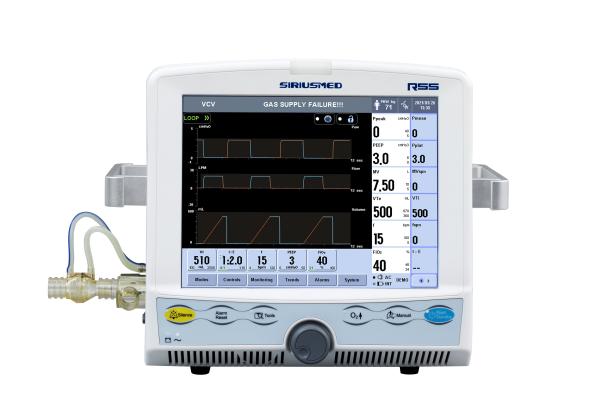

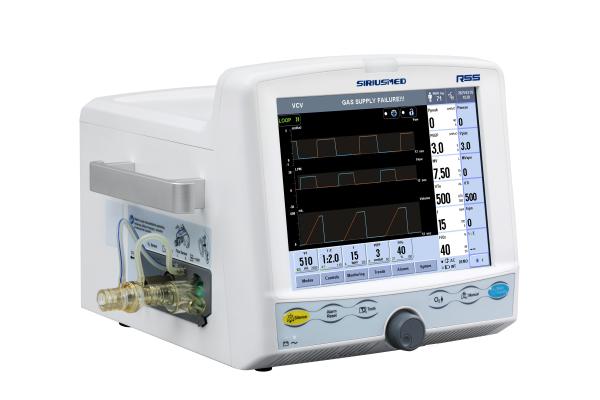

Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Compact Size Siriusmed Ventilator Patient Settings Automatic Stored
Specifications
Brand Name :
R55
Payment Terms :
T/T
name :
medical portable touchscreen siriusmed ventilator
keyword :
siriusmed ventilator
Power Source :
Electric
Material :
Metal, Plastic
Warranty: :
1 Year
Instrument classification :
Class III
Widely usage range :
Suitable for infants and adults
Tidal Volume setting :
20~2500mL
Sufficient modes of Ventilation: :
VCV, PCV, SIMV-VC, SIMV-PC, SPONT/CPAP+PSV, DuoPhasic
Friendly user interface: :
TFT color screen with touch screen
Description

Covid Ventilator R55 -Patient Settings Automatic Stored And Can Be Restored Quickly

Good integration:

  • Built-in active expiratory PEEP valve
  • Built-in O2 & Air mixture device
  • Built-in synchronized nebulizer
  • Built-in battery (≥ 90 mins)
  • Optional etCO2 , SPO2 monitoring module
  • Lung mechanics parameters and loops
  • Inspiratory hold with static compliance measurements
  • Manual inspiration
  • 100% O2 suction
  • Nurse Call
  • 72 hours Trend

High Performance Compressor

  • Compact size, portable type for easy install.
  • User convenient display, enable timely effective operate and maintenance efforts.
  • Single Compressor is able to operate for max 2 units of ventilator simultaneously.
  • Verified low noise suitable for long term working in ICU, oil free, overheat protection and high performance dehydration design makes the compressor ideal for isolated gas supply source.
  • Dust-protected, incorporates temperature warning system & Auto/manual shut down features.
  • High-end air compressor automatically switches between compressor and central gas supply.

System Specifications

Pneumatic Ventilator Operating Conditions
  • 12",TFT display, with touch screen
  • VCV, PCV, SIMV-VC, SIMV-PC, CPAP/PSV,

(Optional PRVC,NIV,VS) :见上描述

,BACKUP

  • P-T, F-T, V-T

CO2-time, pulse rate-time,

loop: P-V, F-V ,P-F

  • NI-MH battery, >90mins
  • RS232, VGA, USB, Remote alarm
  • Gas supply: Air, O2, 280kPa -600kPa (41~87 PSI)
  • Power supply: 100-240V, 50/60Hz
  • Temperature: 10-40℃ (Operation),
  • ℃ (Storage)
  • Relative humidity: 5%-95%,

non-condensing (Operation)

  • Atmospheric pressure

(Operation & Storage): 500hPa-1060hPa

  • Dimensions (H×W×D):

Ventilator: 455mm x 400mm x 300mm

Trolley: 565mm X 535mmX 910mm

  • Weight:

Ventilator: 12.5 kg

Trolley: 20 kg
Standards
  • IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, ISO 80601-2-12
Alarm Upper limit Lower limit

Tidal volume

Minute volume

Oxygen concentration

Airway pressure

Respiratory frequency

ETCO2

Pulse rate

Circuit occlusion

Apnea alarm

O2 SUPPLY DOWN alarm

Mains failure alarm

Battery power low alarm

Battery discharged alarm

Alarm silence

20~3000 mL

1~99 L

22~100%, OFF

1~99 cmH2O

1~120 bpm

0.1~13.3 kPa

31~250 bpm

(PEEP+15) cmH2O, 15s

10~60s

< 280 kPa

Automatically switch

< 10 min

< 5 min

≤120 s

OFF,20~2999 mL

0~98 L

20~100%

0~98 cmH2O

OFF,1~99 bpm

0~13.2 kPa

30~249 bpm

(PEEP+15) cmH2O, 15s

10~60s

< 280 kPa

Automatically switch

< 10 min

< 5 min

≤120 s
Setting Parameter Monitoring Parameter

Tidal volume

Respiratory frequency

Inspiratory time

Breath-hold time

Pressure triggering

Flowrate triggering

PEEP

Pressure support

Pressure control

High pressure level

Low pressure level

Oxygen concentration

100% O2

T-high

T-low

freeze

Expiratory hold

Inspiratory hold

Manual inspiration

20~2500mL

1~120 bpm

0.1~12 s

0~50%

-20cmH2O[1] ~PEEP 0

0.5~20 L/min

0~50 cmH2O

0~80 cmH2O

5~80 cmH2O

5~80 cmH2O

0~50 cmH2O

21~100%

2mins

0.1~30s

0.3~30s

Yes

Yes

Yes

Yes

Inspiratory tidal volume

Expiratory tidal volume

Minute volume

Spontaneous minute volume

Spontaneous respiration frequency

PEEP

Airway peak pressure

Mean airway pressure

Inspiratory platform pressure

Minimum airway pressure

Inhaled oxygen concentration

Airway resistance

Compliance

RSBI

PEEPi

EtCO2

0~4000 mL

0~4000 mL

0~99 L

0~99 L/min

0~120 bpm

0~120 bpm

0~100 cmH2O

0~100 cmH2O

0~100 cmH2O

0~100 cmH2O

-20~100 cmH2O

15% ~100 %

0~600 cmH2O/(L/S)

0~300 mL/cmH2O

0 ~ 9999 bpm/L

0~100cmH2O

0 ~ 100 mmHg
