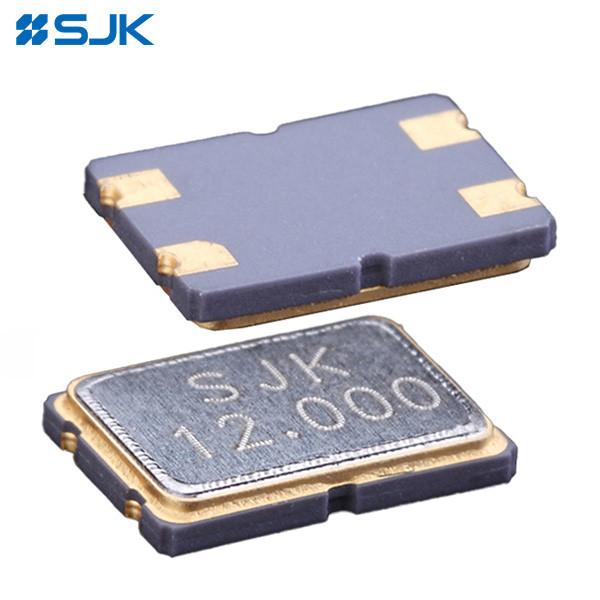

6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
Specifications
Brand Name :
SJK
Model Number :
6F Series SMD Crystal 7050
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30K pcs per Month
Delivery Time :
2~4weeks
Packaging Details :
1000pcs /Reel
Type :
6F Series SMD Crystal 7050
Frequency Range :
6MHz To 160MHz
Package Size :
7.0*5.0*1.2mm
Package Type :
SMD Type
Load Capacitance :
16pF, 18pF, 20pF, or specify
Green Product :
RoHS Compliant /Pb-Free
Description

6F Series SMD7050 Crystals 6MHz to 160MHz High Stability and Reliability for Communications and Industrial Control

Features:

  • Exhibits extremely low aging with a high shock and vibration resistance
  • The entire package can be grounded via the top metal lid and the two bottom pads
  • 7050 size miniature SMD crystal units with low profile of 1.2mm
  • Frequency range from 6MHz to 160MHz
  • High frequency stability and reliability
  • Automatic mounting and reflow soldering
  • Application for PC, Teleommunications, DSC, Wireless communication, Industril control, Automotive, etc
  • RoHS Compliant / Pb Free

Electronic Specifications:

Item 6F Series SMD 7050 Crystal Unit
Frequency Range 6MHz~8MHz 8MHz~11MHz 11MHz~14MHz 14MHz~50MHz 40MHz~50MHz 50MHz~160MHz
Overtone Order Fundamental 3rd Overtone
Load Capacitance 16pF, 18pF, 20pF, or specify (8pF~32pF)
Drive Level 10 μW ( typ.), 100 μW ( max.)
Frequency Tolerance ±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature ±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance 80Ω 60Ω 50Ω 40Ω 80Ω 90Ω
Operating Temperature -20°C~+70°C, -40°C~+85°C, or specify
Storage Temperature -55°C~+125°C
Package Size 7.0*5.0*1.2mm
Packing Unit 1000pcs/Reel

Dimensions:

6F Series SMD7050 Crystals 6MHz To 160MHz For Communications And Industrial Control
