Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm
Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm
Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm
Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm
Specifications
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Bag
Brand Name :
SJK
Model Number :
2X
Model :
2X Series DIP-14 OCXO
Frequency range :
5~40MHz
Supply voltage :
3.3V/5.0V
Frequency Tolerance :
u00b150ppm
Size :
20.3*12.7*11.0mm
Applications :
Base Station, Digital Switch, Measuring Equipment, SDH, SONET
Description
Thru-Hole Full Size OCXO With 20.3*12.7*11.0mm

Features

OCXO (Oven Controlled Crystal Oscillator)

Typical 20.3×12.7×11mm 14-Pin Full-size Thru-hole OCXO

Frequency range from 5MHz to 40MHz

±50ppb frequency stability over -40~+85℃

Stratum 3 (Overall ±4.6ppm including 10 years aging)

Very fast warm-up and accurate stability

Applications: Base station, Digital Switch, Test Equipment, Measuring Equipment, SDH, SONET, etc

RoHS Compliant & Pb-Free

Specifications

Type 2X Series DIP-14 OCXO
Output Type HCMOS
Output Load 15pF, or specify
Output Wave Form Rectangular
Supply Voltage 3.3V/5.0V
Frequency Range 5~40MHz
Operating Temperature -20~+70℃, or specify
Frequency Stability Frequency Tolerance ±0.1ppm Max.
vs. Operating Temperature ±50ppb~±200ppb
vs. Supply Voltage ±50ppb Max. (±5 Change)
vs. Load ±50ppb Max. (±10 Change)
vs Aging ±5.0ppb /Daily, ±0.5ppm/Year, ±3.0ppm/10 years
Voltage Vol (Max.) / Voh (Min.) 0.1Vcc/0.9Vcc
Duty Cycle 45~55%
Spurious -60dBc
Warm-up ±0.1ppm (In 2 minutes @+25, referenced to 1 hour)
Power Consumption (Steady state) 0.8W Max.
Frequency Adjustment Range ±5.0ppm (+1.65V±1.65V/+2.5V±2.5V)
Phase Noise @20MHz @10Hz -105dBc/Hz
@100Hz -130dBc/Hz
@1KHz -140dBc/Hz
@10KHz -150dBc/Hz
Packing Unit 200pcs.

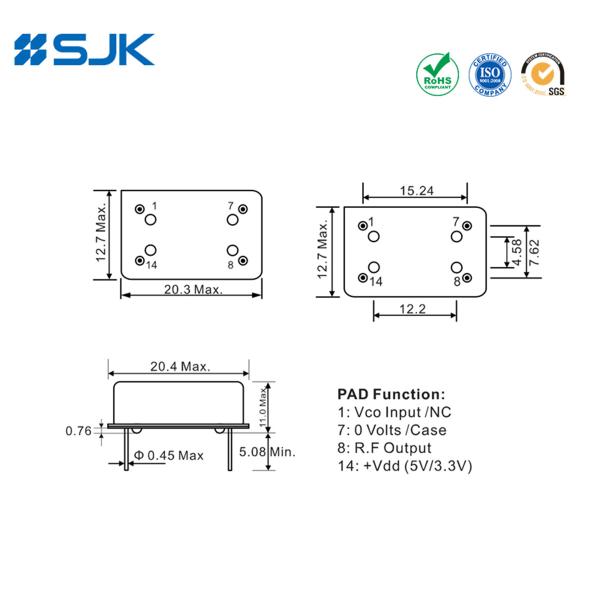

Dimensions [mm]

Thru-Hole Full Size OCXO With 20.3 X 12.7 X 11.0mm
