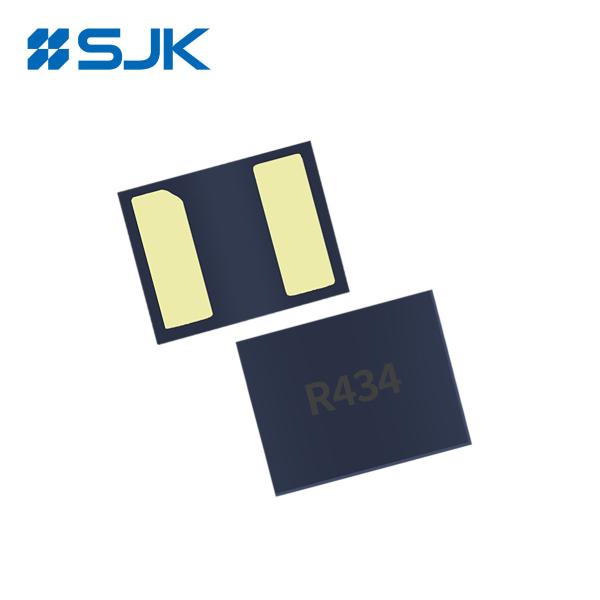

2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
Specifications
Brand Name :
SJK
Model Number :
SJK-SR434-2016-A6
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
4000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
30Kpcs per Month
Delivery Time :
2-3 wks
Packaging Details :
4Kpcs/Reel
Model :
2016 SAW Resonator
Frequency :
304.45~433.92
Frequency Tolerance :
±100KHz
Insertion Loss :
2.2dB Max.
Size :
2.0x1.6x0.9mm
Description

2016 2 Pins SAW Resonator With 433.92MHz ±100KHz

Features

1-Port SAW Resonator

CSP Package for SMT

Package Size 2.0x1.6x0.9 mm

Electrostatic Sensitive Device

Application: Automotive Electronics, Remote Control, Security Alarm, etc.

RoHS Compliant & Pb Free

Specifications

Item Minimum Typical Maximum Unit
Center Frequency Absolute Frequency 315, 433.92, or other frequency MHz
Frequency Tolerance ±100 KHz
Insertion Loss (Min.) 1.3 2.2 dB
Quality Factor Unloaded Q 12000
50Ω loaded Q 1500
Temperature Stability Turnover Temperature 10 25 40 ℃
Turnover Frequency Fc
Frequency Temperature Coefficient 0.032 ppm/℃
Frequency Aging Absolute Value During The First Year ≦10 ppm/yr
DC Insulation Resistance Between Any Two Pins 1.0 MΩ
RF Equivalent RLC Model Motional Resistance 12.196 18 Ω
Motional Inductance 183.82 110.2 μH
Motional Capacitance 0.733 fF
Static Capacitance 1.45 2.23 2.05 pF
Operating Temperature -40 +85 ℃
Storage Temperature -55 125 ℃
DC Voltage 10 V

Dimensions [mm]

2016 2 Pins SAW Resonator With 433.92MHz ±100KHz 2.2dB
